Paint Booth Measurements: Your Ultimate Guide to Sizing and Efficiency
Thinking about setting up or upgrading your spray area? Understanding precise Paint Booth Measurements is absolutely foundational to the success, safety, and efficiency of your operation. It's not just about fitting the booth into your workshop; it's about ensuring optimal airflow and perfect finishes.
Whether you are tackling small automotive parts or massive industrial machinery, getting the dimensions right determines everything from air turnover rate (CFM) to the size of the equipment you can spray. Let's dive into the essential measurements you need to master before investing in or building your next paint booth.
Why Accurate Paint Booth Measurements Matter So Much
Accuracy in sizing isn't merely a convenience—it's a regulatory and quality necessity. An undersized booth can lead to dangerous conditions, poor visibility, and terrible finishes due to overspray accumulation. On the flip side, an oversized booth wastes energy and can make heating or curing inefficient.
Proper Paint Booth Measurements ensure compliance with NFPA (National Fire Protection Association) standards and OSHA requirements regarding ventilation. When your measurements are spot on, you guarantee enough working space around the object being sprayed and maintain a clean, safe environment for your technicians.
Key Dimensions You Need to Know
When measuring a booth, we typically look at three main structural dimensions. These measurements usually refer to the internal working space, not the exterior footprint, which is crucial for installation planning.
- Internal Working Width (W): This is the space from wall to wall, where the sprayer stands and maneuvers around the object. You need to account for clearance on both sides of the vehicle or component.
- Internal Working Height (H): Measured from the floor (or grates) to the ceiling filters (plenum). Remember to factor in the height of the vehicle, plus room for the sprayer to reach the top comfortably, often using a mobile platform or lift.
- Internal Working Depth/Length (D/L): This measurement must comfortably fit the longest item you plan to spray, plus a buffer zone at both the entry and exit points for door closure and airflow stabilization.
Always add at least three to four feet of clearance around the largest object you plan to spray when determining these core dimensions. This buffer space is essential for effective overspray capture and safe movement.
Standard vs. Custom Booth Sizes
Many manufacturers offer standard sizes, particularly for automotive applications. These are great if they fit your needs and space, often saving on cost and installation time.
However, if you deal with unique equipment, such as large trucks, specific industrial parts, or oddly shaped items, you will likely need a custom solution. Custom sizing requires extremely precise Paint Booth Measurements taken from your facility and detailed engineering plans to ensure proper filtration and lighting coverage.
Measuring for Different Applications
The required dimensions shift dramatically depending on what you are painting. A small hobbyist booth for furniture is vastly different from a commercial booth designed for tractor trailers. Tailoring your measurements to your primary application is key to maximizing return on investment.

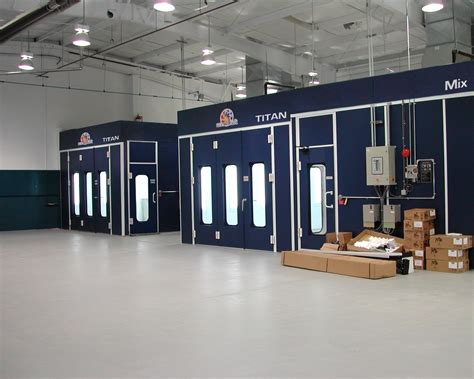

Automotive Paint Booth Measurements
Standard automotive booths are designed to accommodate passenger vehicles and light trucks. The most common sizes are generally 14 feet wide by 24 to 26 feet long, with an internal height of 9 to 10 feet. These dimensions allow adequate working space around a typical sedan or SUV.
If your shop services larger crew cab trucks or extended-length vans, you must consider increasing the length to 28 or even 30 feet, and potentially the width to 16 feet. This additional space is vital, especially when using complex downdraft airflow systems where maintaining consistent distance from the walls is necessary for proper ventilation.
Industrial and Large Vehicle Booth Measurements
When dealing with industrial equipment, aircraft, or semi-trucks, the size requirements explode. These booths often need widths of 18 to 20 feet, lengths of 50 to 80 feet, and heights ranging from 16 to 20 feet. In these scenarios, the internal height is often dictated by the largest piece of equipment's vertical clearance and the regulatory requirements for the top clearance above that item.
For these heavy-duty applications, calculating the exact size of the largest piece you will ever spray is non-negotiable. Then, you must factor in the necessary space for boom lifts or manlifts required for high-access spraying. These additions significantly impact the overall required Paint Booth Measurements.
Crucial Environmental and Airflow Measurements
While the physical dimensions of the box are important, the technical measurements related to airflow dictate performance and safety. These are often measured in terms of Cubic Feet per Minute (CFM) and velocity (Feet per Minute or FPM).
Filter and Plenum Measurements
The plenum is the pressurized ceiling cavity that distributes filtered air evenly into the booth. Its size is directly related to the required volume of air exchange. A poorly sized or designed plenum will result in uneven airflow and swirling overspray, ruining the finish.
When looking at the ceiling filters, you need to calculate the total surface area of the intake filtration. This area is vital for determining static pressure and ensuring the air velocity remains consistent across the entire painting zone. If you replace standard filters with higher efficiency filters, you may need to adjust the fan power or filter area to maintain necessary air speed.
Airflow Velocity and CFM Calculations
For safety and quality, NFPA guidelines require specific minimum air movement. This is typically measured in Feet Per Minute (FPM). For standard solvent-based painting, a velocity of at least 100 FPM across the working area is often required.
To ensure your fan system is correctly matched to your booth's physical dimensions, you can use a simple calculation based on your Paint Booth Measurements. Here is the basic formula:
- Calculate the total cross-sectional area of the booth (A = Width x Height in feet).
- Multiply the area by the required velocity (e.g., 100 FPM).
- This gives you the required CFM (Cubic Feet per Minute).
For example, a 14' (W) x 9' (H) booth needs an area of 126 sq. ft. Multiplied by 100 FPM, the minimum air movement required is 12,600 CFM. This technical measurement ensures dangerous vapors are effectively evacuated and removed from the booth.
Conclusion: Mastering Your Paint Booth Measurements
Accurate Paint Booth Measurements are the cornerstone of a professional, efficient, and compliant finishing operation. By meticulously considering internal dimensions (width, height, and length) and understanding how these numbers translate into critical airflow and CFM requirements, you can select or design a system that meets your production demands and safety standards.
Don't just estimate—measure precisely. Consulting with an experienced paint booth vendor, armed with your exact size requirements for both the facility and the objects you paint, will guarantee you invest in the right setup the first time.
Frequently Asked Questions (FAQ) About Paint Booth Measurements
- What is the most important measurement in a paint booth?
- While all dimensions are important, the internal height and the required CFM (Cubic Feet per Minute) are often the most critical. Height dictates working accessibility, and CFM dictates the overall safety and quality of the finish through proper ventilation.
- How much extra space should I add beyond the object I am painting?
- A good rule of thumb is to allow a minimum of 3 to 4 feet of clearance on all working sides of the object. This space allows the spray technician to move safely and ensures effective capture of overspray by the ventilation system.
- Do Paint Booth Measurements need to include space for the air handling unit (AHU)?
- Yes, absolutely. The internal dimensions define the working area, but your overall facility plan must account for the exterior footprint of the booth, including the plenum and the location of the Air Handling Unit (AHU), which is usually mounted to the side or roof.
- What is the typical minimum required air velocity (FPM) for a standard automotive paint booth?
- Regulatory bodies often require a minimum of 100 Feet Per Minute (FPM) of air movement across the cross-sectional area of the booth during spraying to ensure adequate removal of flammable vapors and particulates.
