The Magic Behind the Shine: Understanding Exactly How a Car Washer Works
Remember that feeling? You're sitting in your dusty, road-grime-covered car, and then you enter the brightly lit, misty tunnel of the automatic car wash. Moments later, you emerge with a sparkling vehicle. It feels like magic, but we promise—it's pure science and clever engineering!
As a seasoned veteran of battling road salt and mud (and perhaps spending too much time researching high-pressure pump specs), I can tell you that modern car washing is far more sophisticated than just soap and water. Whether you're using a self-service bay or gliding through a massive automated system, the goal is the same: maximum clean with minimum effort.
How do these sophisticated machines manage to blast away layers of grime without harming your clear coat? The answer lies in a precise sequence of chemical application, calculated friction, and sophisticated water management. Let's pull back the curtain and explore the fascinating mechanisms that give your vehicle that showroom finish.
The Different Ways We Wash: Choosing Your Car Wash System
Before we dive into the specific mechanics, it's crucial to understand that "car washer" can refer to a few very different machines. Each system tackles dirt removal in a unique way, balancing speed, cost, and the type of interaction the driver has with the cleaning process. This choice dictates the internal workings of the equipment.
1. In-Bay Automatic (The Drive-In, Stay-Put Wash)
This is often the most accessible type, typically found at gas stations. The vehicle remains stationary while the washing apparatus moves around it. These systems rely heavily on precise sensor technology and powerful jets to ensure coverage.
- Friction Washes: These use soft-touch materials, like foam or specialized cloth brushes, to physically scrub the car's surface. They are highly effective for removing heavy, caked-on grime.

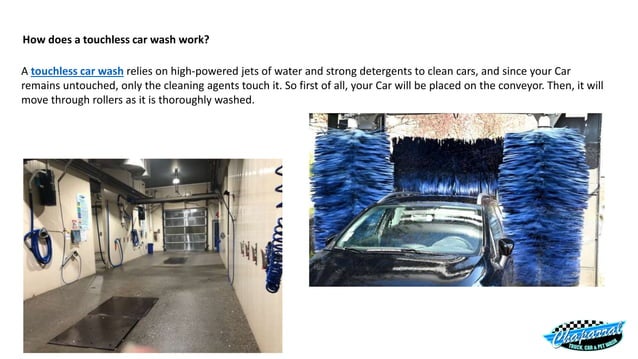

- Touchless Washes: These eliminate physical contact entirely. They use specialized, highly pressurized water jets (often exceeding 1,000 PSI) combined with strong chemical agents (alkaline detergents and degreasers) to lift and dissolve dirt. They are gentler on paint but may struggle with very heavy mud or baked-on contaminants.
2. Exterior Conveyor (The Classic Car Wash Tunnel)
This is the workhorse of the industry. Your car is placed on a track or conveyor belt and pulled through a long tunnel where multiple cleaning stages occur simultaneously. This system prioritizes throughput and efficiency.
- The Conveyor System: The mechanism that moves the car is crucial. The conveyor ensures a consistent speed and spacing between vehicles, allowing each stage of the wash to perform its function for the optimized time.
- Multiple Stations: Unlike the In-Bay system, the Tunnel Wash spreads the workload. The pre-soak, scrubbing, rinsing, and drying all happen sequentially at dedicated stations, maximizing the impact of each stage.
3. Self-Service Bay (The High-Pressure DIY Approach)
While you are the operator here, the mechanics are still industrial-grade. Self-service bays utilize a powerful, centralized pressure washing unit and a bank of storage tanks for various chemicals. Coin-operated timers manage the flow, and you select the desired function (e.g., tire cleaner, soap, rinse, wax) via a rotating selector switch connected to the central pump system.
Deep Dive into the Wash Cycle: The Mechanics of the Clean
Regardless of the type of car wash, the cleaning process follows a meticulously engineered cycle designed to lift, loosen, neutralize, and rinse away contaminants without causing abrasion. This sequence is key to achieving that deep, lasting shine.
Phase 1: Pre-Soak and Chemical Application
The first step is arguably the most critical for scratch prevention. The vehicle is saturated with specialized surfactants and alkaline detergents. These chemicals are designed to attack the electrostatic bond that holds road film and dirt particles onto the clear coat.
This pre-soak softens the grime, meaning that when the friction stage begins (if applicable), the brushes are mostly moving loosened material rather than grinding dry particles against the paint. Often, a separate foam or low-pH chemical is applied specifically to wheels and tires to break down brake dust and oil residue.
Phase 2: Agitation and Friction Management
If you are in a friction wash, this is when the cleaning tools activate. Modern car washes use highly engineered, closed-cell foam or micro-fiber cloth strips called "mitters" or "wraps."
Crucially, these components don't just spin; they are constantly lubricated with fresh water. The continuous flow of water flushes away the debris the brush has just removed, ensuring the cleaning medium remains clean and preventing the transfer of abrasive particles back onto the car's surface. This constant rinsing action is why professional car washes are often safer for your paint than using a dirty sponge at home.
In touchless systems, this phase relies solely on hydrodynamic force. The oscillating nozzles change their angles rapidly, creating a physical scouring action using only water pressure, essentially vaporizing the dirt loosened by the pre-soak chemicals.
Phase 3: The High-Pressure Rinse Cycle
After scrubbing, all chemical residue and debris must be completely removed. The car is subjected to a powerful rinse cycle. This ensures that the acidic or alkaline cleaners do not remain on the paint, which could cause discoloration or degradation over time. The pressure used here is typically less intense than the cleaning phase, focusing on coverage and volume rather than pure force.
Phase 4: Wax, Sealants, and Protectants
To enhance shine and provide protection, various treatments are applied. These usually involve polymers or waxes dispensed via a dedicated foaming applicator or fine spray nozzle. Modern sealants are hydrophobic, meaning they cause water to bead up and roll off immediately, which aids significantly in the final drying stage and provides temporary protection against UV rays and road film.
Phase 5: The Spot-Free Finish
This final rinse is the secret weapon against unsightly water spots. Regular tap water contains dissolved minerals (such as calcium, magnesium, and salts). When this mineralized water evaporates, it leaves behind white, cloudy residue—the dreaded water spot.
Professional car wash systems overcome this by using Deionized (DI) or Reverse Osmosis (RO) water for the final pass. These filtration processes strip nearly all minerals from the water, allowing the droplets to evaporate cleanly without leaving any residue, resulting in a pristine, spot-free finish.
The Tech Behind the Shine: Pressure, Sensors, and Water Recycling
The efficiency and reliability of a modern car washer stem from its underlying technical infrastructure. This includes advanced computerized controls, powerful pumping mechanisms, and sophisticated environmental controls.
The Heartbeat: High-Pressure Pumps and Plumbing
The entire operation relies on heavy-duty, industrial piston pumps—often called positive displacement pumps. These pumps are designed to operate continuously under high stress, drawing water from storage or municipal supply and boosting its pressure dramatically. A complex manifold system then directs this high-pressure flow to dozens of specialized nozzles, ensuring consistent pressure distribution across the entire wash tunnel.
Precision Control: Sensors and PLCs
How does the machine know exactly when to start spraying or when to stop the brushes? It uses a combination of advanced sensors and a central computing unit called a PLC (Programmable Logic Controller).
- Photoelectric Sensors: These light beams detect the entry and exit points of the vehicle, initiating the wash sequence.
- Ultrasonic Profiling: More advanced systems use ultrasonic sensors to map the exact contours of the vehicle (its length, height, and width). This is called "vehicle profiling."
- Smart Adjustments: Based on the profile data, the PLC adjusts the brush rotation speed, the travel path of robotic spray arms, and the duration of chemical application. This customization prevents damage (like knocking off a tall antenna) and ensures that the cleaning action is focused where it's needed.
Environmental Responsibility: Water Reclamation
One of the most impressive technical aspects of modern car washing is water conservation. Unlike washing a car in your driveway, commercial car washes employ water recycling or reclamation systems. This significantly reduces the environmental footprint.
Water used in the initial wash and rinse (excluding the final fresh, spot-free rinse) is captured in large underground filtration pits. This water undergoes a multi-step purification process:
- Solids Removal: Settling tanks and mechanical filters remove sand, grit, and large debris.
- Chemical Treatment: Ozone injection or biological filters are used to break down soaps, oils, and bacteria, eliminating the potential for foul odors.
- Fine Filtration: The water is passed through high-efficiency filters (sometimes utilizing Reverse Osmosis) before being pumped back into the wash system for reuse.
By implementing these advanced reclamation methods, high-volume car washes can typically reuse 70% to 85% of their water, making them remarkably efficient compared to traditional home washing.
Conclusion: More Than Just a Spray
The next time you pull out of that misty tunnel with a gleaming car, remember that the "magic" is actually a complex, synchronized dance of chemistry, pressure dynamics, and advanced automation. From the sophisticated pre-soak chemicals dissolving road grime to the PLC regulating hundreds of gallons of recycled water per minute, the modern car washer is a marvel of engineering designed for speed, effectiveness, and environmental consciousness.
It's a perfect example of how technology takes a simple chore and transforms it into an efficient, industrial process that delivers a consistently excellent result.
