Fresh Air Paint Respirator: Breathe Easy While You Work
If you spend serious time painting—whether you're running a professional auto body shop or tackling big DIY projects with serious coatings—you know the odors are intense. More importantly, the fumes are dangerous. Standard dust masks or even basic cartridge respirators often aren't enough when dealing with high volumes of volatile organic compounds (VOCs) and isocyanates.
That's where the Fresh Air Paint Respirator system comes in. This isn't just a mask; it's a dedicated supplied-air solution designed to give you clean, safe air, no matter how toxic the environment around you gets. Ready to protect your long-term health and upgrade your painting game? Let's dive in.
Why You Absolutely Need a Fresh Air Paint Respirator
While traditional cartridge respirators are excellent for filtering certain contaminants, they have limitations. They rely on filters that eventually saturate, and they still make your lungs work hard to pull air through the filtering medium. When spraying high-solids paints, two-part epoxies, or clear coats containing isocyanates, you need protection that goes beyond typical filtration.
A true supplied-air or Fresh Air Paint Respirator delivers a constant stream of clean air, typically from a source outside the contaminated work zone. This ensures positive pressure inside your hood or mask, meaning no contaminated air can sneak in through gaps or leaks.
The Dangers Lurking in Paint Fumes
Many modern paints contain chemicals that can cause immediate irritation and severe, long-term health damage. Ignoring these risks is simply not worth it, especially if you paint regularly. These harmful substances don't just smell bad; they pose significant health threats.
Here are some of the chemical nasties a fresh air system helps you avoid:
- Isocyanates: Found in many two-part polyurethane paints and clear coats, these are highly sensitizing agents that can cause severe asthma and lung damage, even after short exposures.
- VOCs (Volatile Organic Compounds): These are solvents that evaporate easily and contribute to ozone formation. Exposure can lead to dizziness, headaches, and chronic respiratory issues.
- Paint Pigments and Solids: Fine particles and mists generated during spraying can settle deep in the lungs, causing irritation and inflammation over time.
- Carbon Monoxide (If using combustion sources nearby): Although less common, supplied air systems ensure you aren't breathing ambient air that might be contaminated by combustion engines or nearby hazards.
How Supplied Air Systems Work
Unlike filtering respirators, a supplied air system pulls air from a clean source, processes it, and pumps it directly to your facepiece. This process is highly effective and ensures maximum safety during extended painting sessions.
The operation is simple and incredibly effective:
- Air Intake: A powerful air pump (often called a breathing air pump or compressor) draws ambient air from a non-contaminated area, far from the overspray and fumes.
- Filtration: The air passes through specialized filtration systems to remove moisture, oil, and particulates that could be harmful or uncomfortable.
- Delivery: The cleaned air travels through a robust, specialized air hose directly to the hood or full-face mask you are wearing.
- Positive Pressure: The constant flow maintains positive pressure inside the hood, physically pushing any potential contaminants away from your breathing zone.
Choosing the Right Fresh Air Paint Respirator System
When shopping for a Fresh Air Paint Respirator, you'll encounter a few different configurations. Your choice depends heavily on your specific needs, the frequency of use, and the number of users you need to protect simultaneously.
Look for systems specifically rated for supplied breathing air (Grade D Air). Do not use standard shop air compressors without extensive, specialized purification, as typical compressors introduce harmful oils and carbon monoxide risk.

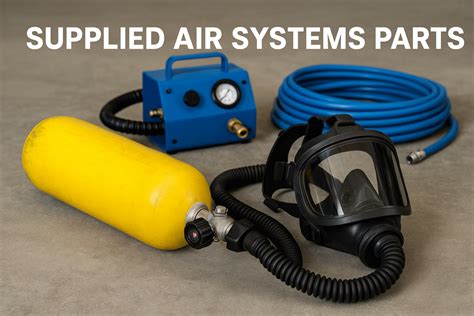

Key Components of a Supplied Air System
A complete system is more than just a mask and a pump. Understanding these components is essential to ensure you purchase a reliable and effective setup.
- Breathing Air Pump (BAP): This oil-less, dedicated pump pulls the air. Ensure it can handle the required flow rate for your mask.
- Hose Assembly: Usually a rugged, highly visible hose that connects the pump to the user. Standard lengths range from 50 to 100 feet.
- Hood or Helmet: Often a lightweight hood with a wide viewing area. Many include integrated features like tear-off lenses to keep your visibility crystal clear.
- Air Control Valve: This valve allows the user to adjust the volume of air flowing into the helmet for maximum comfort and cooling.
- Optional Air Cooler/Heater: For extreme temperatures, inline devices can condition the incoming air, making those long painting jobs much more tolerable.
Pressure vs. Flow: Understanding Ventilation Needs
When looking at pump specifications, you'll see ratings measured in CFM (Cubic Feet per Minute) or LPM (Liters per Minute). Flow rate is the key metric for a Fresh Air Paint Respirator.
The standard requirement for most supplied-air hoods is around 6 CFM (about 170 LPM) per user to maintain the positive pressure needed for safety. Always check the manufacturer's requirements for your specific hood style. If you plan to use a dual-user system, you must ensure your pump can handle the combined CFM requirement.
Adequate flow not only guarantees safety but also keeps you comfortable. The continuous rush of air prevents fogging and helps regulate temperature inside the hood.
Maintenance and Best Practices for Longevity
Investing in a supplied air system is investing in your health, so treating the equipment well is paramount. Regular maintenance ensures the integrity of the air supply and extends the life of your equipment.
H4: Simple Checks to Keep Your System Running Smoothly
Before every use, conduct a quick inspection. Look specifically for any damage to the air hose, especially cracks or kinks that could restrict airflow. Restriction means less pressure, and less pressure means compromised safety.
For the pump itself, check the intake filter regularly. Since the pump is constantly pulling ambient air, dust and debris can accumulate quickly, reducing efficiency. Replace tear-off lenses on your hood as soon as overspray impedes visibility.
H4: Replacing Filters and Components
The oil-less pump usually has a basic air filter that should be cleaned or replaced per the manufacturer's schedule. If your system incorporates additional inline carbon filters (which some do for extra peace of mind), mark your calendar for scheduled replacements.
Always store the hose neatly, preferably coiled and protected from physical damage or exposure to harsh chemicals when not in use. Keeping the hose clean prevents contamination from being accidentally introduced when connecting to the hood.
Conclusion
When dealing with harsh chemicals like isocyanates or undertaking long, continuous spray jobs, there is no substitute for a dedicated Fresh Air Paint Respirator. While the initial investment is higher than traditional cartridge masks, the protection supplied air offers is unmatched. It provides peace of mind, superior comfort, and, most importantly, protects your long-term health from serious respiratory illnesses.
Prioritize your safety today. Whether you're a hobbyist seeking the best protection or a professional shop owner ensuring OSHA compliance, making the switch to a supplied air system is the smartest decision you can make.
Fresh Air Paint Respirator FAQ
- What is the main difference between a fresh air respirator and a cartridge respirator?
- A cartridge respirator filters contaminated ambient air using chemical absorbers, which eventually wear out. A fresh air respirator (supplied air) delivers clean air from an uncontaminated source outside the work area, ensuring 100% clean breathing air and positive pressure inside the mask.
- Can I use my standard shop air compressor for my fresh air system?
- Generally, no. Standard compressors introduce oils and moisture, and there is a high risk of carbon monoxide exposure unless the compressor is specifically designed, filtered, and monitored for Grade D breathing air. Dedicated, oil-less breathing air pumps are mandatory for safe use.
- How far away should the pump be placed?
- The air pump intake should be placed in an area that is guaranteed to be free of overspray, vehicle exhaust, or any other toxic fumes. Typically, this means placing the pump outdoors or in an adjacent clean room, often using 50 to 100 feet of hose.
- Are these systems comfortable to wear?
- Yes, supplied air hoods are often far more comfortable than tight-fitting cartridge respirators. The constant flow of air prevents heat and moisture buildup, prevents fogging, and removes the breathing resistance associated with filtering air through cartridges.
