Paint Conveyor
Paint Conveyor: The Ultimate Guide to Perfect Finishing Systems
Are you looking to optimize your industrial painting process and achieve flawless finishes every single time? If so, the heart of your operation isn't the spray gun—it's the system that moves your parts: the Paint Conveyor. Choosing the right conveyor is absolutely crucial for efficiency, consistency, and ultimately, the quality of your finished product.
A well-designed paint conveyor system ensures that parts move smoothly through preparation, application, curing, and cooling stages. It minimizes manual handling, reduces bottlenecks, and drastically cuts down on defects caused by inconsistent speeds or shaky movements. This comprehensive guide will walk you through everything you need to know about these essential systems.
Ready to streamline your painting line? Let's dive into what makes a great paint conveyor system and how you can select the perfect one for your specific needs.
Why Your Finishing Line Needs a High-Quality Paint Conveyor
In high-volume manufacturing, time is money, and consistency is paramount. Without a reliable paint conveyor, operators would have to manually load and unload parts in various stages, leading to significant variance in curing times and coating thickness. Furthermore, manual movement increases the risk of contamination and injury.
A high-quality Paint Conveyor provides stable, predictable movement. This stability is essential for automated paint application (like robotic spray systems) which rely on exact positioning and speed. Crucially, modern conveyors are designed to withstand the harsh environments of finishing lines, including high heat from curing ovens and exposure to chemicals.
Think of the conveyor as the backbone of your finishing process. If the backbone is weak, the entire system suffers. Therefore, investing in robust and customized conveyor technology is not an expense—it's a necessity for competitive production.
Understanding the Different Types of Paint Conveyor Systems
The type of conveyor system you choose heavily depends on the size, weight, and required throughput of your parts. While many configurations exist, three primary types dominate the industrial painting sector, each offering unique advantages.

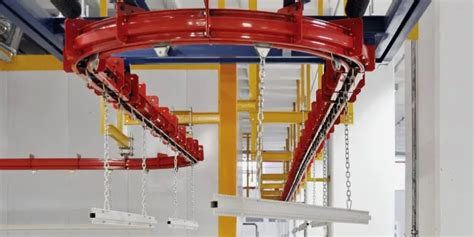

Overhead Monorail Paint Conveyor
The overhead monorail system is perhaps the most common choice for general finishing lines. Parts hang from trolleys attached to a continuous chain that runs along an overhead I-beam track. This design is highly space-efficient as it keeps floor space clear for operators and equipment.
Monorail systems are excellent for light to medium-weight parts, such as automotive components, appliance panels, or smaller fabricated items. They can navigate complex layouts, including steep inclines and declines necessary for dipping or oven entry.
Key features of overhead monorail systems include:
- Continuous flow and fixed speed for consistent coating application.
- Excellent space utilization, minimizing footprint.
- Relatively simple construction, leading to easier maintenance.
- Suitable for processes requiring parts to rotate or swing slightly.
Power and Free Paint Conveyor Systems
For applications demanding maximum flexibility and heavier loads, the Power and Free (P&F) system is the go-to solution. Unlike continuous monorails, P&F systems use a dual-track design: one track provides the power (the drive chain), and the second track allows the carriers (free trolleys) to accumulate, stop, or divert.
This ability to stop individual carriers without halting the entire line is invaluable in painting. It allows for longer dwell times in specific areas, precise presentation to robotic sprayers, and efficient accumulation zones before and after the paint booth. This dynamic control significantly boosts process flexibility.
Flatbed/Slat Paint Conveyors
Flatbed or slat conveyors are typically used when parts are too large or heavy to hang from an overhead system, or when maximum stability during application is required. In these systems, parts rest directly on a horizontal surface, usually a series of closely linked slats or pallets.
These conveyors are frequently employed in powder coating lines or for painting very large components like car chassis or massive machinery parts. The flat surface provides an incredibly stable platform, ensuring no swinging or movement during critical robotic application phases.
Key Design Features and Components of a Robust Paint Conveyor
When evaluating potential systems, you need to look beyond the basic structure and consider the quality of the underlying components. The environment within a paint line—high heat, solvents, and potentially abrasive powders—demands specialized hardware.
Here are the crucial components that define a high-performance system:
- **Trolleys and Hangers:** These must be precision-machined to ensure smooth rolling and minimal wear. Specialized trolleys with sealed bearings are often used to prevent paint residue or cleaning chemicals from infiltrating and seizing the moving parts.
- **Drive System:** Variable Frequency Drives (VFDs) are essential. They allow for precise speed control and soft start/stop capabilities, which prevents swaying and jerkiness that could ruin a wet coat of paint.
- **Track Design:** The track (or rail) must be robust and resistant to heat distortion, especially where the conveyor enters the curing oven. Proper track alignment minimizes friction and extends chain life.
- **Chain and Lubrication:** The conveyor chain is the lifeline of the system. Automatic lubrication systems are vital, delivering precise amounts of specialized, high-temperature lubricant to the chain joints and bearings without contaminating the product below.
Keeping Your Paint Conveyor Running Smoothly: Essential Maintenance Tips
A well-maintained conveyor not only runs more efficiently but also dramatically reduces unplanned downtime. Regular preventive maintenance is non-negotiable in a busy finishing operation.
First and foremost, establish a strict cleaning schedule. Paint overspray, curing residues, and dust can accumulate on the track and trolleys, increasing friction and power consumption. You should regularly inspect the track for debris and clean the trolleys, paying special attention to areas near the paint application zone.
Secondly, lubrication is key. Ensure your automated lubrication system is functioning correctly and is using the specified high-temperature lubricant suitable for oven zones. Finally, monitor chain tension regularly. A chain that is too loose can jump the sprockets, while one that is too tight increases wear and tear on the drive system.
Maximizing Efficiency: The Core Benefits of Modern Paint Conveyor Technology
Adopting state-of-the-art paint conveyor systems offers competitive advantages far beyond simple transportation. They integrate directly into IoT (Internet of Things) manufacturing strategies, providing real-time data that can drive significant process improvements.
Modern conveyors often feature smart sensors that monitor chain tension, temperature, and lubrication points. This predictive maintenance capability allows operators to address potential problems before they lead to catastrophic failure.
Furthermore, precise speed synchronization with robotic systems minimizes waste. When the conveyor speed is perfectly matched to the robot's programming, you achieve optimal paint transfer efficiency, reducing material usage and operational costs. Ultimately, the biggest benefit is the consistent, repeatable quality that keeps customers happy.
Conclusion
The Paint Conveyor is undeniably the unsung hero of any high-performance finishing operation. Whether you opt for the simplicity of an overhead monorail or the flexibility of a Power and Free system, choosing a durable, well-maintained conveyor is critical for maximizing throughput and ensuring consistent quality.
Remember that the right system is an investment in stability and precision. By focusing on robust components, smart design, and diligent maintenance, your paint conveyor will continue to deliver flawless results for years to come. Take the time to assess your specific application needs and select the system that will truly elevate your finishing line.
Frequently Asked Questions (FAQ) about Paint Conveyors
- What is the main difference between Power and Free and Monorail Paint Conveyors?
- Power and Free (P&F) systems use a dual track that allows individual carriers to stop, start, accumulate, or divert independently of the main drive chain. Standard monorail conveyors use a single continuous chain, meaning if one part stops, the entire line must stop.
- How often should a Paint Conveyor chain be lubricated?
- In high-production environments, especially those involving heat or corrosive elements, automatic lubrication systems should apply lubricant continuously or cyclically. Manual lubrication schedules usually require attention daily or weekly, focusing primarily on high-stress points like chain joints and trolley bearings.
- Can a Paint Conveyor be integrated with robotic painting systems?
- Absolutely. Modern paint conveyors are designed specifically to integrate with robotic systems. They utilize VFDs and encoder feedback to ensure the conveyor speed is perfectly synchronized with the robot's spray pattern, which is essential for uniform coating thickness.
- What factors determine the best type of Paint Conveyor for my product?
- The three main factors are: 1) Part weight and size (determining load capacity); 2) Required process flexibility (do you need accumulation or stopping capability?); and 3) Environmental conditions (high heat, extreme curves, or specialized dips).
