Paint Booth Installation
The Essential Guide to Seamless Paint Booth Installation

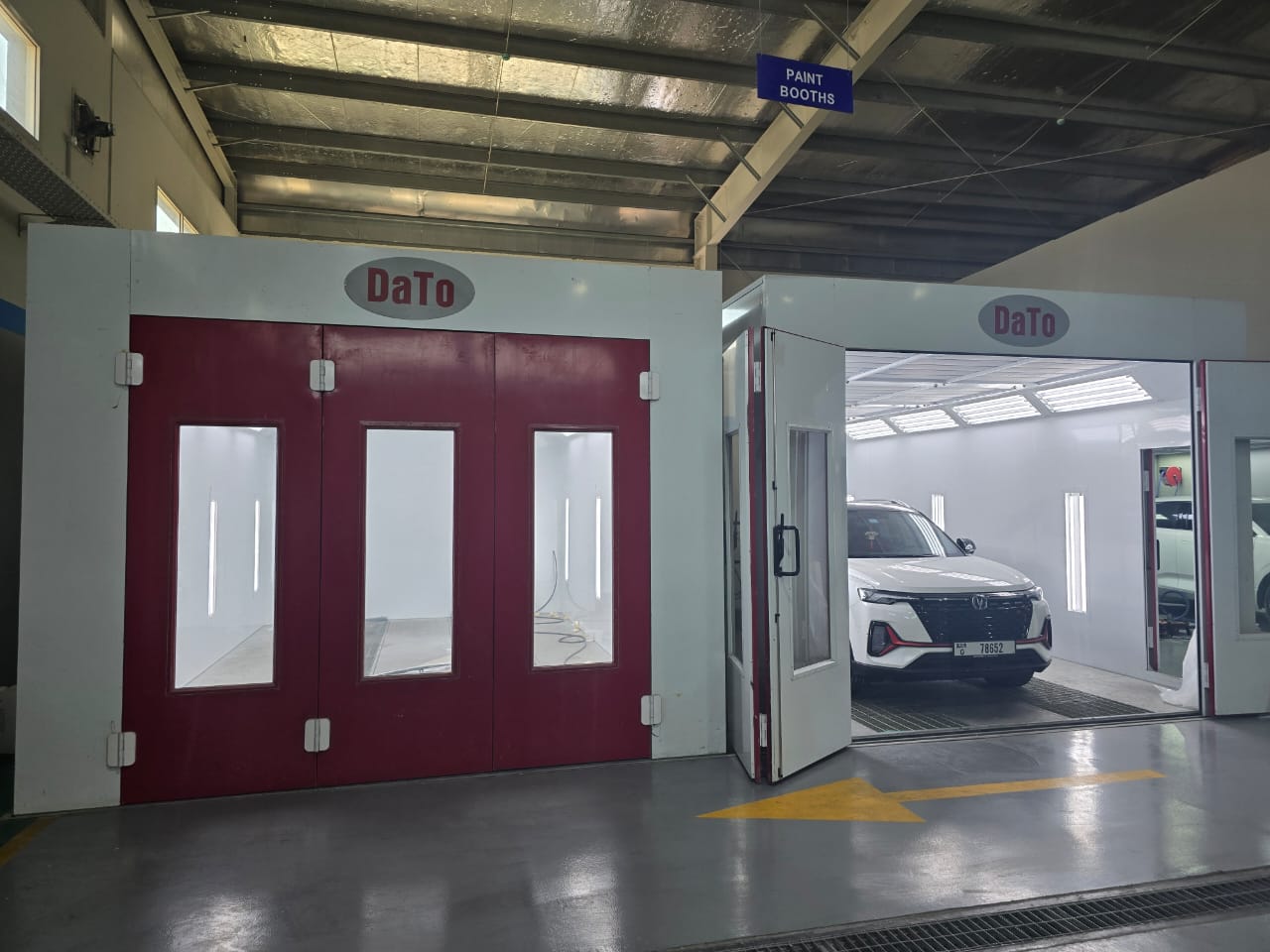

Thinking about upgrading your shop or starting a dedicated finishing business? Investing in a quality paint booth is the single most important step you can take. But getting that massive piece of equipment from the crate to fully operational is where the real work begins. That's why we put together this essential guide covering every crucial detail of successful Paint Booth Installation.
Whether you are a seasoned automotive professional or a dedicated hobbyist, installing a paint booth requires careful planning, adherence to safety standards, and sometimes, a little heavy lifting. We're here to walk you through the process, ensuring your setup is compliant, efficient, and ready to deliver those flawless finishes you dream of.
Why Proper Paint Booth Installation Is Non-Negotiable
Many people view the installation process as simply bolting pieces together. However, proper Paint Booth Installation goes far beyond structural assembly. It directly impacts your worker safety, the quality of your finish, and your long-term operational costs.
A poorly installed booth, for instance, can result in inadequate airflow, creating dangerous concentrations of volatile organic compounds (VOCs). Conversely, a professionally installed system maximizes efficiency, minimizes overspray, and dramatically improves the cleanliness of your finished product. This attention to detail is truly what separates a mediocre shop from a high-quality finishing facility.
Selecting the Best Booth Type for Your Needs
Before you even unbox the components, you need to confirm that the booth you purchased is the right fit for your space and workflow. Different booth types rely on specific airflow patterns, which heavily influence the complexity of the installation and ventilation planning.
Most commercial operations utilize either Crossdraft or Downdraft systems. The installation requirements for the ductwork and foundation vary significantly between the two, meaning thorough research is mandatory.
Here are the primary types and their installation considerations:
- Crossdraft Booths: Air enters one end and exits the other. Installation is typically simpler and more affordable because they often don't require pits or raised platforms. However, they may leave more overspray dust on the sides of the painted object.
- Downdraft Booths: Air enters the ceiling and is pulled down through floor filters or a basement pit. This provides the cleanest finish but requires complex pit excavation or the construction of a raised steel base, significantly increasing Paint Booth Installation difficulty and cost.
- Side-Downdraft Booths: A hybrid solution where air is still pulled downwards, but exhausted through side walls. This eliminates the need for a floor pit while retaining excellent finish quality.
Your Step-by-Step Paint Booth Installation Checklist
Preparation is everything in a major installation project. Having a solid checklist ensures you cover all your bases—from permits to foundational work—long before the first wall panel goes up. This preemptive planning saves time, money, and avoids frustrating delays.
Remember that local fire codes (NFPA 33) and building codes are extremely strict regarding paint booths. Ensure you obtain all necessary local permits before beginning the construction phase. Failure to do so can result in hefty fines or mandated removal later.
Preparing Your Space: Site and Utility Requirements
The site where your booth will be installed needs specific accommodations to handle the power demands, air supply, and foundation requirements of the equipment. Always consult your manufacturer's installation manual for exact specifications, especially concerning ceiling height and electrical connections.
- Foundation: The floor must be perfectly level and strong enough to bear the booth's weight, plus the weight of the objects being painted. If you are installing a downdraft booth, this is the stage where the concrete pit must be precisely excavated and framed.
- Electrical Supply: Paint booths, especially those with cure cycles (bake modes), require significant three-phase power. Verify that your electrical panel can handle the load and that the wiring is rated for hazardous locations (explosion-proof lights and components are standard).
- Compressed Air: While the booth itself handles ventilation, you'll need clean, dry compressed air for your spray guns. Plan the routing of air lines and install adequate filtration/drying systems nearby to prevent moisture contamination.
Crucial Details: Ventilation and Airflow Essentials
The heart of successful painting is efficient airflow. This involves installing the exhaust fans and ductwork correctly. Poor ventilation is the number one cause of fire marshal citations and poor paint quality.
When installing your ductwork, minimize bends and turns. Every bend increases static pressure, forcing your fan motor to work harder and reducing the effective air speed (Cubic Feet per Minute or CFM). The ideal exhaust exit should be located away from air intake sources and any public areas, directed according to local regulations.
Navigating the Installation Process: DIY or Pro?
Most commercial paint booth systems come with detailed instructions, leading many businesses to consider a DIY installation to save on labor costs. While this is feasible for smaller, simpler crossdraft booths, the complexity of downdraft or pressurized systems often warrants professional expertise.
A professional installation company specializes in HVAC integration, electrical code compliance (especially concerning hazardous locations), and fire suppression systems. Hiring experts ensures that the warranty remains valid and that the booth passes mandatory inspection on the first try.
The Core Steps for Successful Paint Booth Installation
Once the site is prepped and the necessary utilities are in place, the physical assembly can begin. This process requires several people, lifting equipment, and precise measurements.
Follow these steps closely, referencing your specific manual for precise measurements and bolt configurations:
- Assemble the Base/Platform: If required, set up the foundation frame or elevated steel base. Ensure it is perfectly square and level.
- Install Wall Panels: Bolt the vertical structural members (columns) together first, then attach the wall and roof panels. Use approved sealants on all joints to ensure an airtight environment.
- Set Up Filtration and Lighting: Install the explosion-proof light fixtures and their wiring. Insert the intake filters into the ceiling and the exhaust filters into the designated floor or wall areas.
- Ductwork and Fan Installation: Mount the exhaust fan motor onto the duct flange. Connect all duct pieces, ensuring smooth transitions and secure joints. Seal any external leakage points.
- Connect Utilities and Controls: Have a licensed electrician wire the control panel, fans, and heating system (if applicable). Test all safety interlocks and emergency shut-offs.
- Final Airflow Testing: Conduct a static pressure test and confirm the CFM output meets minimum code requirements to certify the booth for use.
Completing these steps correctly is critical for minimizing fire risks and achieving that professional-grade finish. Proper Paint Booth Installation is truly the foundation of a successful painting operation.
Conclusion: Achieving Operational Excellence
Successfully completing your Paint Booth Installation transforms an empty space into a high-performance finishing environment. While the process is complex, requiring detailed attention to permits, electrical codes, and airflow dynamics, the payoff is immense: a safer workspace, cleaner finishes, and superior efficiency.
Whether you choose to tackle the installation yourself or rely on certified professionals, never cut corners on safety or compliance. A well-installed paint booth is not just an expense; it is a long-term investment that protects your personnel and elevates the quality of every product you paint.
Frequently Asked Questions (FAQ) About Paint Booth Installation
- What is the most common mistake made during Paint Booth Installation?
- The most common mistake is improper ductwork design. Using too many sharp turns or undersized ducting significantly restricts airflow (CFM), leading to poor ventilation, excess overspray, and potential failure to meet fire code standards (NFPA 33).
- Do I need permits to install a paint booth?
- Absolutely. Paint booths are considered hazardous equipment and require permits from local building and fire departments. You must comply with federal OSHA regulations, NFPA standards, and local environmental codes regarding air quality and emissions.
- How long does a typical Paint Booth Installation take?
- For a standard, mid-sized crossdraft booth on a prepared pad, installation by experienced professionals typically takes 3 to 5 days. Complex downdraft systems requiring pit construction, heavy ducting, and sophisticated HVAC integration can take 1 to 2 weeks.
- Should I install the air compressor inside or outside the booth?
- The main air compressor should always be located outside the paint booth, ideally in a separate, clean room. Running the compressor inside the booth area generates heat and moisture, which is detrimental to the painting process, and poses a risk in a potentially flammable atmosphere.
