The Ultimate Guide to Paint Booth Duct Systems: Everything You Need to Know
Hey there! If you run a professional painting operation, whether for automotive or industrial finishing, you know how crucial ventilation is. But when we talk about ventilation, we're often talking about the heart of the system: the Paint Booth Duct. This isn't just a simple metal pipe; it's a carefully engineered pathway designed to remove hazardous contaminants, ensuring safety and optimizing your final product.
Ignoring or mishandling your ductwork can lead to massive problems, ranging from poor finish quality to serious fire risks. We're here to walk you through everything you need to know, from selecting the right materials to maintaining peak efficiency in your Paint Booth Duct system.
Why Your Paint Booth Duct is the Real MVP of Ventilation
A high-quality Paint Booth Duct system performs several essential functions simultaneously. First and foremost, it safeguards the health of your workers by exhausting toxic solvents and volatile organic compounds (VOCs). Without adequate ventilation, these chemicals build up, creating an unsafe and potentially deadly environment.
Furthermore, proper ductwork directly impacts the quality of your paint finish. By efficiently pulling overspray and particulates out of the working area, it prevents contaminants from settling back onto the wet surface. This ensures a clean, smooth, and professional result every time you finish a job.
Safety First: Preventing Fires and Explosions
When you spray paints and coatings, the air quickly becomes saturated with highly flammable vapors. The primary job of the Paint Booth Duct is to move this air rapidly and safely outdoors, preventing the concentration of explosive mixtures within the booth. This function is mandated by strict codes, such as NFPA 33.
Adherence to these codes is non-negotiable. If your duct system isn't installed correctly or is improperly sized, you could face devastating consequences. Always ensure your ductwork meets local fire and safety regulations, including clearance requirements from combustible materials.
Maintaining Peak Performance and Finish Quality
When the airflow through your Paint Booth Duct is compromised, several things happen that degrade your results. You might experience turbulent air patterns, which can cause imperfections like swirling or uneven coverage. Overspray might also linger in the air longer than necessary, leading to increased contamination.
A well-designed system maintains laminar flow—smooth, even movement of air—from the intake filters, across the workspace, and into the exhaust plenum. This consistent air velocity is crucial for proper overspray capture and effective drying, ensuring a flawless finish every time.
Choosing the Right Materials: Not All Ducts Are Created Equal
The materials used for your Paint Booth Duct must be robust and resistant to corrosion, as they constantly handle sticky paint particles and corrosive solvents. Generally, the industry relies on galvanized steel or stainless steel, depending on the application and local climate.
Galvanized steel is often the standard choice for general-purpose solvent-based painting booths due to its durability and cost-effectiveness. However, if you are using highly corrosive or acidic coatings, you might need to upgrade to stainless steel to ensure longevity and prevent premature system failure. Never use flexible ductwork for this application, as it poses a massive fire risk and severely restricts airflow.
Essential Considerations for Paint Booth Duct Design
Designing the layout for your Paint Booth Duct requires careful planning to maintain the necessary velocity and minimize static pressure. Static pressure is essentially the resistance to airflow caused by friction and obstacles in the ductwork. The higher the static pressure, the harder your exhaust fan has to work.
Here are the crucial design factors to minimize resistance:
- Minimize Bends: Use the fewest possible elbows. If a turn is necessary, opt for long-radius elbows over sharp, 90-degree corners.
- Proper Sizing: The duct diameter must be calculated precisely based on the fan capacity and the required velocity (typically 1,200 to 2,500 feet per minute). Undersizing the duct greatly reduces performance.
- Straight Runs: Design runs that are as straight as possible, especially immediately after the exhaust fan outlet.
- Vertical Runs: If possible, route the duct vertically through the roof rather than horizontally, as this aids in condensate drainage and prevents paint buildup.

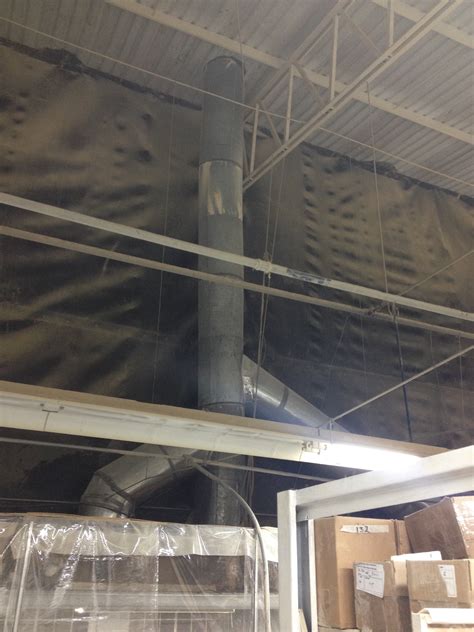

Installation Secrets: Getting Your Paint Booth Duct System Right
The best ductwork materials won't matter if the installation is faulty. When joining sections of your Paint Booth Duct, the seams must be leak-proof and oriented correctly. It is highly recommended that you seal all joints using a non-combustible, high-temperature sealant.
Furthermore, pay close attention to the positioning of your cleanout doors. These strategically placed access points are essential for routine inspection and maintenance. They allow you to remove accumulated paint sludge without disassembling the entire system.
The Critical Role of Proper Sealing and Grounding
Proper sealing prevents air from escaping (or leaking back in), maintaining the required negative pressure inside the booth. Leaks drastically reduce the efficiency of the exhaust fan and violate safety codes. Always use metal fasteners and fire-rated gaskets or sealants designed for high-heat industrial applications.
Equally important is electrical grounding. Since air moving through the duct can generate static electricity, the entire metallic Paint Booth Duct system must be securely grounded to prevent sparks. Sparks in an atmosphere saturated with solvent vapors are a direct ignition source for fires and explosions, so double-checking your grounding connections is vital.
Maintenance and Cleaning: Keeping Your Air Flowing Smoothly
Over time, paint solids will inevitably build up on the interior walls of your Paint Booth Duct. This accumulation reduces the duct's effective diameter, increases static pressure, and decreases fan efficiency. Worse yet, heavy deposits become a dangerous fire load.
Regular maintenance is key to operational efficiency and compliance. How often you clean depends heavily on your production volume and the types of coatings you use. Many operations schedule duct cleanings annually or bi-annually.
Key maintenance steps include:
- Regular Inspection: Use the cleanout doors to visually inspect the duct interior for buildup at least every six months.
- Cleaning Methods: Depending on the residue, cleaning can involve specialized scraping tools, chemical solvents, or even high-pressure washing (if the duct is completely watertight and dried afterwards).
- Fan Checks: Ensure the exhaust fan blades are clean. Paint buildup on the blades causes vibration and imbalance, which leads to premature motor failure and reduced airflow.
- Filter Management: While not part of the duct itself, constantly monitoring and changing exhaust filters prevents large particulates from entering the ductwork in the first place.
Failing to maintain the duct can eventually require costly replacement, which is far more expensive than routine cleaning.
Conclusion
The Paint Booth Duct is truly the unsung hero of any professional finishing operation. It's responsible for protecting your staff, adhering to strict safety codes, and ensuring that every paint job leaves the booth looking perfect. By selecting the correct materials, focusing on precise installation, and committing to regular maintenance, you can ensure your duct system remains efficient, safe, and effective for years to come.
Remember, don't skimp on your ductwork—it's an investment in safety and quality control that pays dividends every single day.
Frequently Asked Questions (FAQ) About Paint Booth Duct
- What material is best for my Paint Booth Duct?
- Typically, galvanized steel is sufficient and cost-effective. However, if you are spraying highly acidic or corrosive coatings, stainless steel is recommended for long-term durability and chemical resistance.
- How often should I clean my Paint Booth Duct?
- The frequency depends on your usage and coating type. High-volume shops or those using high-solids paint might need cleaning every six months. Low-volume shops may only need annual or bi-annual inspection and cleaning, but check local fire codes for specific mandates.
- Why are 90-degree bends bad for the system?
- Sharp 90-degree bends create excessive turbulence and significantly increase static pressure, forcing the exhaust fan to work harder. They also create prime spots for paint overspray to accumulate, leading to rapid buildup and fire risk. Use gradual, long-radius elbows instead.
- Is flexible ducting safe to use for paint booth ventilation?
- No. Flexible ducting is highly discouraged and often forbidden by code (like NFPA 33) because it traps paint particles, creates major friction losses, and is not structurally suitable for fire separation requirements. Always use rigid, non-combustible metal ductwork.
