Torque Stripe Paint: The Ultimate Guide to Bolt Security
If you work in maintenance, engineering, aviation, or any industry where structural integrity is paramount, you've probably seen brightly colored stripes painted across nuts and bolts. These aren't just aesthetic decorations; they are the frontline defense against catastrophic failures. We are talking about Torque Stripe Paint, also commonly known as tamper-proof paint, torque seal, or anti-sabotage lacquer.
Understanding how to properly select and apply this simple, yet crucial, material can dramatically improve operational safety and efficiency. This comprehensive guide will walk you through everything you need to know about Torque Stripe Paint, from its function to application tips, ensuring your critical fasteners stay exactly where they should be.
So, buckle up! Let's dive deep into the world of visual security checks and see why a small dab of paint is one of the most cost-effective safety measures you can implement today.
Why is Torque Stripe Paint Essential for Safety?
In high-vibration environments—think airplane engines, heavy machinery, or rail tracks—fasteners are constantly battling forces that try to loosen them. Even if a bolt is torqued perfectly during assembly, thermal changes, dynamic loads, and operational stress can cause it to gradually lose tension. This is where Torque Stripe Paint shines.
Its primary role is visual assurance. When applied across the joint between a bolt head and the surrounding material (or between a nut and a stud), the paint creates a visual baseline. If the bolt begins to loosen even slightly, the stripe will fracture, immediately alerting maintenance staff that the component requires attention.
This allows for rapid and non-invasive inspections, saving countless hours compared to needing to physically check the torque of every single fastener during a routine inspection. The visual cue offered by Torque Stripe Paint makes compliance documentation much easier as well.
The Science Behind the Stripe: How Does it Work?
Torque seal relies on a simple mechanical principle backed by specialized chemistry. These paints are typically designed to dry into a brittle or semi-flexible film that adheres strongly to metal surfaces. Once dry, the coating is tough but not elastic.
If the fastener rotates, the small shearing force is enough to break the integrity of the paint film, creating a noticeable gap or crack in the stripe. This immediate visible break indicates that torque has been lost or, crucially, that someone has tampered with the setting—hence the name "tamper-proof."
These paints must also cure quickly and offer excellent resistance to typical industrial fluids, such as oils, solvents, and fuel, ensuring the visual indicator remains intact unless the bolt moves.
Key Advantages of Using Torque Stripe Paint
The benefits extend beyond just basic inspection. Implementing a standard procedure for using Torque Stripe Paint enhances overall operational efficiency.
- Immediate Detection: Loose fasteners can be spotted from a distance without specialized tools.
- Tamper Evidence: Provides clear indication if unauthorized adjustments have been made to calibrated equipment.
- Cost-Effective: Compared to electronic monitoring systems or lengthy manual torque checks, the paint is extremely affordable.
- Documentation Support: The application of the stripe often serves as physical proof that a fastener has been inspected and torqued correctly.
- Versatility: Can be used on almost any type of fastener, regardless of size or material.
Choosing the Right Torque Seal: Types and Formulations
Not all torque stripe products are created equal. Depending on your operational environment, you need to select a formulation that can withstand the specific stresses and temperatures of the application.
The main differentiator usually lies in the consistency and drying method:
- Lacquer-Based Paints: These are the most common. They dry quickly and are often quite brittle, providing a clean break signal. They are great for standard industrial applications where exposure to extreme temperatures is minimal.
- Epoxy-Based Paints: Offering superior chemical resistance and adhesion, these are often required in corrosive environments or high-stress applications like aerospace. They take longer to cure but provide a more durable initial bond.
- UV Sensitive Paints: These contain fluorescent compounds, allowing inspectors to easily check fasteners in dark or recessed areas using a black light. This adds another layer of security and efficiency.
Always check the manufacturer's specifications for maximum temperature tolerance and chemical compatibility before purchasing a Torque Stripe Paint.
Application Techniques: How to Apply Torque Stripe Paint Like a Pro
Applying torque stripe paint correctly is crucial. If the paint is too thin, it may degrade quickly; if it's too thick, it might peel off easily or crack prematurely, leading to false positives. Achieving that perfect, reliable stripe requires attention to detail.

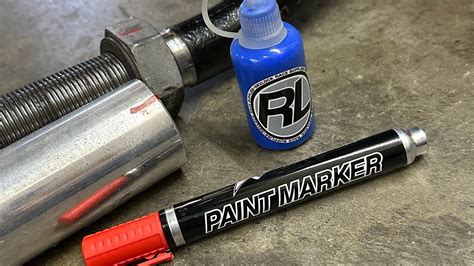

The paint is typically supplied in a tube with a fine nozzle, or sometimes in small pots with applicator brushes.
Preparation is Key: Ensuring Longevity
A good stripe starts with a clean surface. Oil, grease, rust, or dirt will compromise the paint's adhesion, making it ineffective as a tamper seal. You wouldn't paint your living room walls without wiping them down first, so treat your critical fasteners with the same respect!
Here's the standard procedure for optimal application:
- Torque Verification: First and foremost, ensure the fastener is correctly torqued to specifications. Do not apply the paint until the mechanical job is complete.
- Clean the Surface: Use a degreasing solvent (like IPA or acetone, if compatible with the surrounding materials) to wipe down the area where the stripe will go. Allow the surface to dry completely.
- Mixing (if needed): If using a bottled paint, gently shake or stir the product to ensure uniform color and consistency.
- Application: Apply a single, continuous line of paint spanning the joint, covering the edge of the nut or bolt head and extending onto the substrate or connecting component. The line should be visible but not excessively thick.
- Curing: Allow adequate time for the paint to fully cure. This is crucial. Curing times can range from 30 minutes to 24 hours depending on the product formulation and environmental conditions (temperature and humidity). Consult the product datasheet.
Remember, the goal is to create a witness mark that spans the boundary of the rotation, locking the two surfaces together visually.
Common Mistakes to Avoid During Application
Even seasoned professionals can occasionally slip up. Avoiding these mistakes ensures the integrity of your visual inspection system:
- Applying Too Soon: Never apply the paint before confirming the final torque has been set. The paint itself is not a thread locker; it's an indicator.
- Inadequate Cleaning: Applying paint over greasy surfaces will result in premature chipping or flaking, giving false readings.
- Insufficient Coverage: The stripe must bridge both components (e.g., the bolt head and the housing). A stripe only covering the bolt head is useless.
- Applying Too Much Paint: Over-application leads to very long drying times and a rubbery texture that may stretch instead of breaking when the bolt loosens, defeating the purpose of the brittle indicator.
- Ignoring Environmental Factors: Extreme cold or heat can affect curing time. Ensure your environment matches the specifications recommended by the Torque Stripe Paint manufacturer.
Maintenance and Inspection with Torque Stripe Paint
Once applied and cured, the torque stripe serves as a maintenance officer on permanent duty. Regular visual inspections are now much faster. Instead of checking torque readings, inspectors simply look for a broken line.
In environments requiring strict adherence to inspection protocols, such as aviation, the color of the paint often corresponds to the date of inspection or the department responsible for the torqueing process. Using different colors provides immediate context during audit checks.
If a stripe is broken, the corrective action is clear: the fastener must be retorqued, inspected for damage, and a new stripe applied once the system is deemed safe and secure. This simple process keeps critical systems running reliably.
Conclusion: The Small Stripe with Big Responsibility
Torque Stripe Paint may seem like a minor detail, but its role in ensuring the safe operation of complex mechanical systems is undeniable. It is a highly effective, low-cost solution that provides instantaneous visual verification of fastener integrity and tamper evidence.
Whether you call it torque seal, tamper-proof lacquer, or alignment paint, selecting the correct type, preparing the surfaces thoroughly, and applying it properly are the keys to leveraging its full potential. By incorporating this simple step into your maintenance routine, you add a robust layer of security and efficiency to your operations, keeping everything tight and running smoothly.
Frequently Asked Questions (FAQ) about Torque Stripe Paint
- What is the difference between Torque Stripe Paint and thread locker?
- Torque Stripe Paint (or torque seal) is purely a visual indicator of movement or tampering. It has minimal mechanical strength. A thread locker (like Loctite) is a chemical adhesive applied to the threads to prevent loosening due to vibration, providing high mechanical strength. They serve different but sometimes complementary roles.
- How long does Torque Stripe Paint last?
- When applied correctly to a clean surface and allowed to fully cure, high-quality torque stripe paint can last for years. Its longevity depends on environmental exposure—resistance to UV light, chemicals, and extreme temperatures must match the operational requirements.
- Can I use regular acrylic paint instead of specialized Torque Stripe Paint?
- No. Regular paint typically remains too flexible and elastic once dry. Specialized Torque Stripe Paint is formulated to become brittle when cured, ensuring that even a fraction of a degree of rotation causes a clear, visible break or crack, providing reliable indication.
- Are there standard colors for Torque Stripe Paint?
- While there are no universally mandated colors, many companies use color coding internally. For instance, red might indicate a recently inspected fastener, yellow for medium priority checks, or different colors assigned to specific inspection teams or dates.
- What should I do if the torque stripe is broken?
- A broken stripe is an immediate warning. The fastener should be checked for actual torque loss or mechanical failure, the underlying issue (like excessive vibration) addressed, and then the fastener must be retorqued to specification before a new stripe is applied.
