Portable Paint Booth Exhaust Fan: Your Guide to Clean and Safe Spraying
Are you passionate about painting, whether it's custom car parts, furniture, or detailed hobbies? If you are, you know that achieving a flawless finish is only half the battle. The other, often overlooked, half is ventilation. This is where the mighty Portable Paint Booth Exhaust Fan steps in to save the day (and your lungs!).
Working in a garage or makeshift space requires smart solutions to manage toxic fumes, overspray, and airborne particulates. A proper exhaust fan isn't just a luxury; it's a fundamental requirement for safety and ensuring professional results. We're going to dive deep into everything you need to know, from choosing the right power to keeping your equipment running smoothly. Let's make your painting environment safe and clean!
Why You Absolutely Need a Portable Paint Booth Exhaust Fan
When you spray paint, you create a cocktail of volatile organic compounds (VOCs) and tiny paint droplets. Without efficient ventilation, these compounds linger in the air. This not only poses serious health risks but also drastically reduces the quality of your finished product. Therefore, investing in a robust Portable Paint Booth Exhaust Fan is non-negotiable for serious hobbyists and professionals alike.
Furthermore, many local regulations require specific airflow standards if you are spraying certain chemicals. Being compliant protects you legally while ensuring a better working environment. Let's break down the two main reasons why this equipment is essential.
Safety First: Protecting Your Health
The fumes created by solvents and paint thinners can cause dizziness, headaches, and, with prolonged exposure, severe respiratory issues. Your exhaust fan is the primary defense line against these invisible threats. It actively pulls contaminated air away from your working area and safely expels it outside.
This removal process ensures that the concentration of harmful vapors remains below dangerous levels. Always remember that even if you wear a respirator, the fan helps prevent these chemicals from saturating your clothes and workshop, providing holistic safety.
Quality Finishes: Eliminating Overspray
Have you ever spent hours perfecting a surface only to have tiny flecks of dried paint land on your wet finish? That's overspray recirculation. A powerful and correctly positioned exhaust fan creates a negative pressure environment inside your portable booth.
This negative pressure ensures that air flows in a single direction—away from your object and toward the filtration system. Consequently, overspray is captured immediately, preventing dust, debris, and stray paint particles from ruining your perfect clear coat.
Key Features to Look For When Buying
Selecting the perfect Portable Paint Booth Exhaust Fan can feel overwhelming, especially with so many specifications involved. However, focusing on a few key metrics will simplify the process considerably. We'll concentrate on the movement of air and the motor type, as these are critical to performance.
Here are the fundamental features you should scrutinize before making a purchase:
- **CFM Rating (Cubic Feet per Minute):** This dictates how much air the fan can move.
- **Static Pressure Handling:** Can the fan overcome the resistance created by filters and ducting?
- **Motor Type:** Is it standard or explosion-proof (XP)?
- **Noise Level:** A quieter fan improves the work environment significantly.
- **Portability and Mounting Options:** How easy is it to move and set up the unit?

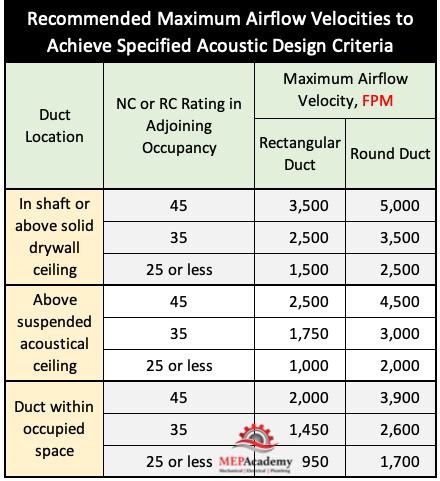

CFM Rating and Airflow Calculation
CFM is arguably the most important number on your fan specification sheet. It represents the volume of air cycled through the fan every minute. For a proper paint booth setup, you need enough CFM to achieve an adequate air velocity, typically 100 feet per minute (FPM) across the face of your booth.
To calculate the minimum required CFM, you need three things: the width (W) and height (H) of the booth opening, and the desired velocity (V, usually 100 FPM). The simple formula is: CFM = W x H x V. Always round up and select a fan that exceeds this minimum requirement to account for filter loading and duct resistance.

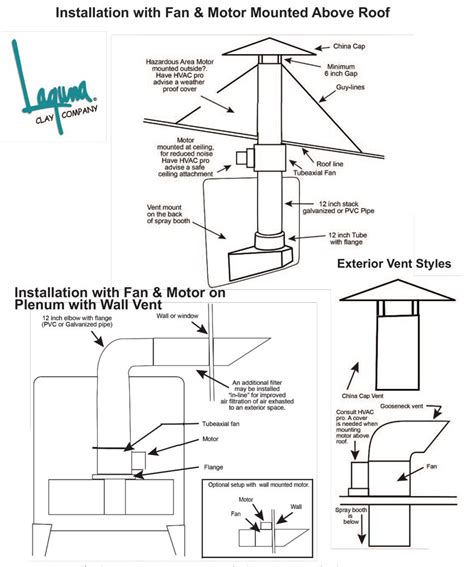

Sizing the Fan for Your Booth
A small, tabletop booth for airbrushing requires significantly less power than a large inflatable automotive booth. If your booth is 10 feet wide and 8 feet tall, you'd need a minimum of 8,000 CFM (10 x 8 x 100). That's a serious industrial fan!
For smaller portable hobby booths, you might only need a few hundred CFM, but the principle remains the same. Make sure the fan size matches the volume of air inside your booth to ensure proper air turnover and effective contaminant removal.

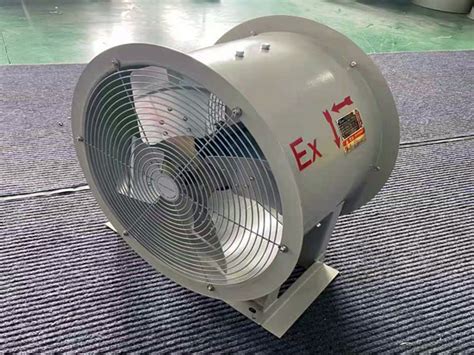

Explosion-Proof vs. Standard Fans
This is a safety topic you absolutely cannot ignore, especially if you are using solvent-based, high-VOC paints. Solvent fumes are highly flammable and heavy. They can settle near the motor of your exhaust fan.
Standard electric motors can produce sparks during operation. If a spark encounters concentrated solvent vapors, the result can be catastrophic. Explosion-Proof (XP) motors are specifically designed and certified to prevent internal sparking from igniting external hazardous atmospheres. If you spray automotive or industrial solvent paints, an XP-rated Portable Paint Booth Exhaust Fan is mandatory.
Installation and Maintenance Tips
Even the best fan in the world won't perform correctly if it's installed poorly or neglected. Proper setup and routine maintenance ensure optimal airflow, longevity of the unit, and consistent safety. Remember, portability doesn't mean you can skip the setup basics!

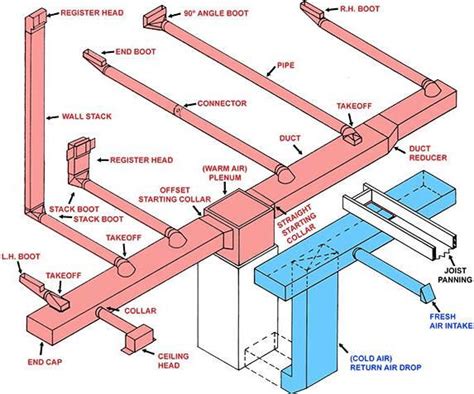

Proper Ducting Setup
Ducting connects your exhaust fan to the outside world. Any restriction in the ductwork will reduce your actual CFM, sometimes severely. Use the largest diameter ducting possible (matching the fan outlet) and keep the path as short and straight as you can. Every bend or corner significantly increases static pressure resistance.
You should also ensure the ducting material is appropriate. Rigid metal ducting is usually preferred for permanent setups, but high-quality flexible, flame-resistant ducting is acceptable for portable applications. Secure all connections tightly to prevent leaks back into the workspace.
Filter Maintenance Schedule
Filters are the workhorses of your paint booth. They capture overspray before it reaches the fan blades and motor, protecting your equipment and the environment. Unfortunately, clogged filters are the number one cause of poor performance in any paint booth setup.
As paint builds up, the fan must work harder against greater static pressure, reducing airflow dramatically. You need a regular schedule for filter replacement. Check out these guidelines:
- **Visual Inspection:** Check filters before every major spray session for heavy saturation.
- **Pressure Check:** If your fan has a manometer or pressure gauge, replace filters when the pressure drop reaches the manufacturer's recommended limit.
- **Time-Based Replacement:** For hobbyists, replace filters every 20-40 hours of actual spray time, depending on the type of paint used.
- **Pre-Filter Use:** Consider using cheap, disposable pre-filters to extend the life of your primary filters.
Conclusion
A well-chosen and properly maintained Portable Paint Booth Exhaust Fan is more than just a piece of equipment; it's an investment in your health, your workspace safety, and the quality of your finished products. Whether you are upgrading from simply opening a window or setting up your first serious paint operation, the principles of CFM, proper ventilation paths, and necessary safety features like explosion-proofing must guide your choice.
By prioritizing the technical specs we discussed—especially CFM and motor rating—and adhering to a strict filter maintenance schedule, you ensure that your portable setup delivers professional results every time. Happy spraying, and stay safe!
Frequently Asked Questions (FAQ)
- What is the minimum recommended air velocity for a paint booth?
- Most standards recommend maintaining an air velocity of at least 100 feet per minute (FPM) across the working opening of the booth to effectively capture overspray and fumes.
- Can I use a standard shop fan instead of a specialized Portable Paint Booth Exhaust Fan?
- No. Using a standard fan is highly dangerous, particularly with solvent paints. Standard motors can spark, igniting flammable vapors. Specialized paint booth fans often feature explosion-proof motors and are designed to handle static pressure resistance from filters.
- How often should I clean the fan blades?
- Even with good filters, some paint dust may build up. If you notice a drop in performance that isn't solved by changing filters, the blades might be dirty. Disassemble and clean the blades according to the manufacturer's instructions, typically every 6 months or after heavy use.
- Do I need an inlet filter for my portable paint booth?
- Yes, absolutely. While the exhaust fan pulls air out, inlet filters (or intake filters) ensure that the air being drawn into the booth is clean and free of dust, pollen, and debris, preventing contamination of your wet paint surface.
