Paint Line Conveyor Systems
Paint Line Conveyor Systems: Everything You Need to Know About Optimizing Your Finishing Process
If you work in manufacturing or industrial finishing, you know that the paint booth is where the magic (or sometimes, the chaos) happens. But the real unsung hero of a successful finishing operation isn't the spray gun—it's the system that keeps parts moving smoothly: the Paint Line Conveyor Systems.
A well-designed conveyor system is much more than just a track; it's the backbone that dictates speed, efficiency, and ultimately, the quality of your final product. Without a robust and correctly configured system, you face bottlenecks, costly downtime, and inconsistent coating results.
This comprehensive guide will walk you through the essentials of Paint Line Conveyor Systems, helping you understand their core components, the different types available, and how you can optimize your setup for maximum productivity. Let's dive in!
Why Paint Line Conveyor Systems Are Essential for Modern Finishing
In high-volume manufacturing environments, manual handling is simply not an option. Conveyor systems eliminate the need for workers to physically move heavy or awkward parts through washing, drying, painting, and curing stages. This automation dramatically reduces labor costs and improves workplace safety.
Furthermore, these systems ensure process consistency. When parts move at a constant, controlled speed, exposure to pre-treatment chemicals, paint application zones, and curing ovens is standardized. This repeatability is crucial for achieving uniform finish quality, whether you are dealing with liquid paint or powder coating applications.
The Challenge of Bottlenecks in the Finishing Line
If your conveyor system isn't tuned correctly, the entire production line can grind to a halt. A bottleneck often occurs when the speed of the pretreatment phase doesn't match the speed required by the curing oven, or when indexing (stopping and starting) is poorly managed.
Addressing these bottlenecks usually involves careful analysis of the system's layout and selecting the correct drive mechanism. Remember, the efficiency of your Paint Line Conveyor Systems directly determines your throughput capacity.

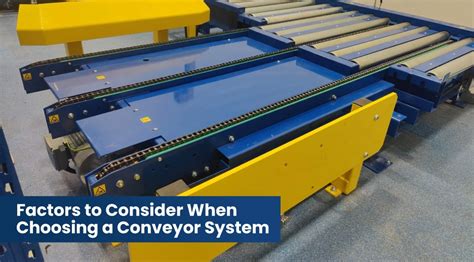

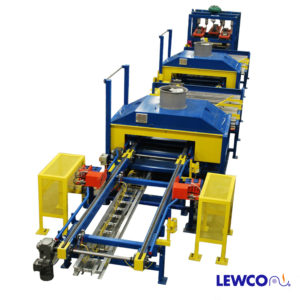

Choosing the Right Type of Conveyor System
Not all conveyors are created equal. The type of system you choose depends heavily on the size, weight, and complexity of the parts you are coating, as well as the desired level of process flexibility.

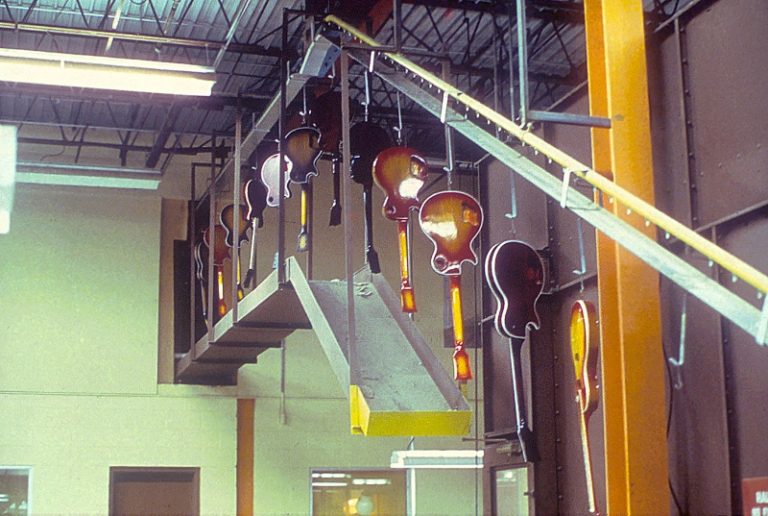

Overhead Trolley Conveyors
These are the workhorses of many paint lines. Overhead conveyors use chains, trolleys, and hooks suspended from an elevated track. They are highly versatile and cost-effective, ideal for moving items through continuous, high-temperature processes like curing ovens.
They operate on a continuous loop, meaning every part moves at the same speed. This simplicity makes them easy to maintain, but they offer limited flexibility in process routing or staging.
Power and Free (P&F) Conveyor Systems
P&F systems represent a significant leap in flexibility. They use two tracks: a powered track that drives carriers, and a free track that allows carriers to accumulate or be redirected to different spurs.
This setup is perfect for complex operations where different parts require varying process times, such as multiple paint booths or specialized curing cycles. The ability to stop individual carriers without halting the entire line is a massive advantage for managing mixed-model production.

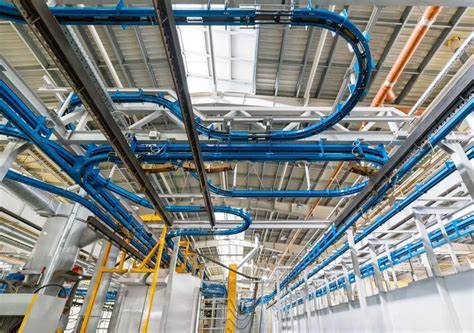

Key Benefits of Optimizing Your Paint Line Conveyor
Investing time and capital into optimizing your conveyor system yields immediate returns. These benefits extend beyond simple speed increases and impact overall business health.
- Reduced Rework and Scrap: Consistent speed and handling minimize blemishes, drips, or insufficient coating thickness, leading to higher first-pass yield.
- Lower Energy Costs: By maintaining a steady flow, ovens and wash stages operate more consistently, reducing energy spikes from stop-start operations.
- Maximized Footprint Utilization: Overhead systems utilize vertical space, keeping valuable floor space free for assembly or storage tasks.
- Increased Throughput: A balanced line ensures that every stage of the finishing process works together seamlessly, allowing you to process more parts per hour.

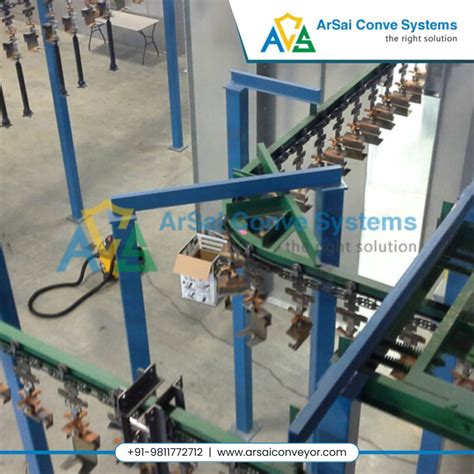

Critical Components of Effective Paint Line Conveyor Systems
Understanding the anatomy of your conveyor is vital for troubleshooting and maintenance. While configurations vary, most systems share these core elements:
- The Track: Typically made of heavy-duty steel, this guides the chain and trolleys. The design of the track determines load capacity and curve radius capabilities.
- The Drive Unit: This is the power source, usually a variable speed motor (VSD) and gearbox. VSDs are essential as they allow precise control over conveyor speed, which is critical for consistent paint application.
- The Chain and Trolleys: The chain links the trolleys together, and the trolleys bear the weight of the parts being coated. These components must withstand high heat and exposure to chemicals.
- Take-Up Units: These mechanisms (often spring or screw actuated) maintain the proper chain tension. Without correct tension, premature wear and system failures are common.
- Load Bars and Hooks: These fixtures connect the part being painted to the trolley. Their design is specific to the product geometry and ensures optimal paint coverage and drainage.
Managing High-Temperature Environments
Since Paint Line Conveyor Systems often pass directly through curing ovens reaching 400°F or more, heat management is crucial. Specialized high-temperature lubricants must be used to prevent bearings from seizing and chains from binding.
Furthermore, the material selection for the chain and trolleys must account for thermal expansion. This factor heavily influences the required tension adjustment and overall system integrity.
Safety and Maintenance Tips for Conveyor Longevity
Preventative maintenance is non-negotiable for maximizing the lifespan of your Paint Line Conveyor Systems and avoiding costly unscheduled breakdowns. A proactive approach saves time and money in the long run.
Here are crucial maintenance steps:
- Regular Lubrication: Use an automated lubrication system if possible. Ensure lubrication occurs at the trolley wheel bearings and chain articulation points, using a high-temperature lubricant suitable for oven zones.
- Chain Tension Checks: Inspect take-up units weekly. Incorrect chain tension is the leading cause of excessive wear and unexpected chain breaks.
- Track Cleaning: Paint overspray and dust accumulation can severely affect track performance and lead to vibration. Install automatic brush systems or schedule manual cleaning sessions regularly.
- Trolley Inspection: Check trolleys and hooks for physical damage, cracks, or excessive paint buildup that could disrupt balance or cause parts to detach.
The Future of Industrial Finishing: Automation and Robotics
Modern Paint Line Conveyor Systems are increasingly integrating with smart technology. Robotics are now common for complex spray applications, but they require highly precise and repeatable part positioning provided by the conveyor.
P&F systems, in particular, facilitate this integration by using sensors and PLCs (Programmable Logic Controllers) to manage accumulation and indexing zones. This synchronization allows robots to paint specific parts while the line is momentarily paused, maximizing paint transfer efficiency and quality.
The trend is moving towards fully digital control systems that provide real-time data on line speed, temperatures, and component wear, allowing operators to make predictive maintenance decisions rather than reactive repairs.
Conclusion
The journey of a product through a finishing line relies heavily on the stability and efficiency of its Paint Line Conveyor Systems. Whether you utilize a straightforward overhead trolley system or a complex power and free setup, prioritizing system design, meticulous maintenance, and process synchronization is paramount.
By understanding the critical components and implementing proactive maintenance strategies, you ensure smoother operations, reduce costs, and consistently deliver high-quality coated products. The conveyor is more than just transport; it is your production pacemaker.
Frequently Asked Questions (FAQ) About Paint Line Conveyor Systems
- What is the difference between an overhead conveyor and a power and free conveyor?
- An overhead conveyor moves all parts continuously at the same speed. A power and free system uses separate powered and free tracks, allowing individual carriers to stop, accumulate, or be rerouted without stopping the entire line, offering greater flexibility for variable processes.
- How often should I lubricate my paint line conveyor system?
- Lubrication frequency depends on usage and environment (especially oven temperature). For high-volume lines, lubrication should be automated or performed daily/shiftly. Always use high-temperature, non-carbonizing lubricants designed specifically for finishing environments.
- Can I use the same conveyor system for both powder coating and liquid painting?
- Physically, yes, the transport mechanism is similar. However, the environmental requirements differ greatly. Powder coating requires much higher curing temperatures, so the system must use components (bearings, seals, chain) rated for that extreme heat. Liquid paint lines typically operate at lower temperatures.
- What causes chain stretch in Paint Line Conveyor Systems?
- Chain stretch is usually caused by wear at the pin-bushing contact points, exacerbated by high tension, insufficient lubrication, or operational shocks (sudden starts/stops). Regular tension adjustments using the take-up unit help manage this issue.
