Intumescent Fire Paint: Your Complete Guide to Fireproofing Protection
Hey there! If you're serious about protecting your property—whether it's a modern steel-framed building or a classic wooden structure—you've likely heard about Intumescent Fire Paint. This isn't just regular paint; it's a critical safety feature that can mean the difference between a minor incident and total structural collapse.
We know that navigating fire safety regulations and choosing the right products can be overwhelming. That's why we put together this complete guide. By the time you finish reading, you'll understand exactly what this amazing product is, how it works its magic, and how to apply it correctly to maximize your building's safety.
What Exactly is Intumescent Fire Paint?
Simply put, Intumescent Fire Paint is a specialized coating designed to expand dramatically when exposed to intense heat. It looks just like normal paint when dry, making it perfect for aesthetic continuity, but its internal chemistry is focused purely on life safety and structural preservation.
Instead of preventing fire, which is nearly impossible in extreme heat, this paint focuses on delaying the transfer of heat to the substrate underneath. This delay buys valuable time—time for occupants to evacuate and for firefighters to control the blaze before the structure fails.

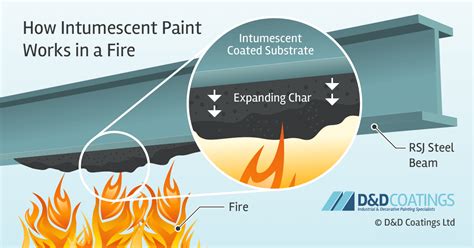

The Magic Behind the Swell: How Intumescence Works
The term 'Intumescent' essentially means 'to swell up.' This is the core mechanism that provides the protection. Unlike standard fire-resistant coatings which simply delay the burn, intumescent coatings actively react when exposed to high heat (usually around 200°C or 392°F).
This remarkable process relies on a few key ingredients working together inside the paint:
- Reaction Initiation: When the heat threshold is met, components within the paint begin to decompose and release an acid source.
- Char Formation: This acid source reacts with a carbon-rich component (usually a binder) to create a soft, tacky substance.
- Expansion and Insulation: A blowing agent activates, releasing non-flammable gases. These gases cause the tacky substance to foam and expand rapidly—sometimes up to 50 times its original thickness!
The resulting puffy, insulating layer is called "char." This char acts as a highly effective barrier, drastically slowing down the rate at which heat penetrates the protected material, be it timber, steel, or concrete.
Why You Need This Safety Shield
If you own or manage a commercial space, fire safety isn't optional; it's mandated by law. But even in residential settings, the benefit of using Intumescent Fire Paint goes far beyond simple compliance. It's about asset protection and, most importantly, human safety.
Traditional building materials fail quickly under intense fire. Steel loses its load-bearing capacity rapidly, and wood burns away. Intumescent paint addresses these vulnerabilities directly.
Protecting Structural Integrity (Steel & Wood)
Different materials require different approaches when using Intumescent Fire Paint. Understanding the weaknesses of your substrate helps you select the right product and achieve the correct fire rating.

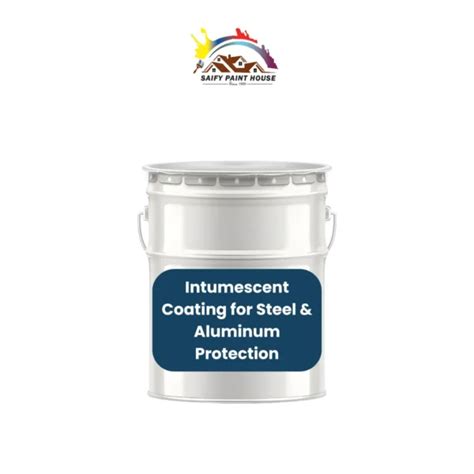

Intumescent Paint for Steel Structures
Steel is non-combustible, but heat is its worst enemy. At temperatures around 550°C (1022°F), steel loses roughly half of its strength, leading to sudden buckling and structural failure. Intumescent coating prevents the steel from reaching this critical failure temperature for a specified duration.
When applying Intumescent Fire Paint to steel, the required thickness is calculated based on the section factor (Hp/A) of the steel beam or column. Thicker sections generally require less paint, while thin sections need more protection to maintain the time rating.
Intumescent Paint for Timber and Wood
For timber, the goal of Intumescent Fire Paint is different. Here, the paint works to prevent the wood from igniting quickly and spreading the flame. The char layer protects the wood itself, limiting the rate of charring and maintaining the load-bearing capacity of the timber members for longer.
Using intumescent coatings on wood allows you to maintain the aesthetic appeal of exposed timber while satisfying strict building codes regarding surface flame spread and fire resistance.
Choosing the Right Fire Rating
Fire ratings are essential. They indicate the length of time (usually 30, 60, 90, or 120 minutes) the protected element can withstand fire before failure. The required rating depends entirely on the building type, size, height, and usage, as defined by local building regulations.
When purchasing Intumescent Fire Paint, always ensure the product has independent certification confirming its fire rating and suitability for your specific substrate. Never guess this requirement!
Types and Applications of Intumescent Fire Paint
Intumescent coatings come in various formulations designed for specific environments and materials. Choosing between water-based and solvent-based paint is usually the first decision you'll face.
Here are the primary types you'll encounter:
- Water-Based Intumescent Paint: Low odor, easy cleanup, and ideal for interior, dry environments. They are generally user-friendly for application but require protection from moisture.
- Solvent-Based Intumescent Paint: Better suited for exterior or high-humidity interior areas. They offer greater durability and resistance to weather but require better ventilation during application.
- Thick Film Epoxies: Used primarily in heavy industrial settings, such as oil rigs or chemical plants. These provide extreme durability and corrosion protection alongside superior fire resistance.
Application Tips: Making Sure It Works
Improper application is the number one reason intumescent coatings fail to perform in a real fire. Since the thickness (known as the Dry Film Thickness, or DFT) is calculated precisely to achieve the required fire rating, strict adherence to the manufacturer's instructions is critical.

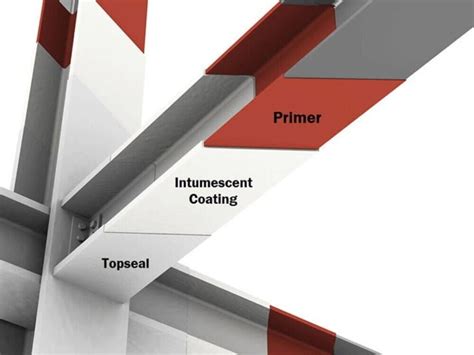

The Three Steps to Perfect Application
Don't skip any of these crucial steps if you want your Intumescent Fire Paint to provide the maximum rated protection:
- Preparation and Primer: The surface must be clean, dry, and often requires a specific primer. For steel, this primer usually includes anti-corrosion properties. The primer ensures proper adhesion and prevents rust from compromising the intumescent layer.
- Application of Intumescent Base Coat: Apply the coating in multiple layers (coats) to achieve the required DFT. You must measure the thickness of each coat while wet and verify the thickness when dry using a DFT gauge. This step is non-negotiable for compliance.
- Top Sealant (Top Coat): Once the intumescent layer is fully cured and verified, a protective top coat is applied. This layer provides aesthetic color and protects the fire paint from moisture, abrasion, and UV degradation.
Remember, professional application is highly recommended, especially for commercial projects, as installers must issue a certificate of compliance confirming the correct thickness was achieved.
Common Questions and Misconceptions about Fire Paint
A lot of confusion exists around passive fire protection. Let's clear up a couple of the most frequent questions we hear.
Is Intumescent Paint Permanent?
While the chemical components don't degrade quickly, Intumescent Fire Paint does have a lifespan. Most manufacturers offer a warranty period—typically between 10 to 25 years, provided the paint is correctly maintained and the protective top coat remains intact. Regular inspection is vital to ensure the coating hasn't been damaged, scratched, or exposed to excessive moisture.
Can I Use Any Color Top Coat?
Yes, usually! The color coat is primarily aesthetic and protective. However, you must use a top coat that is chemically compatible with the intumescent base coat, as specified by the product manufacturer. Using an incompatible paint can sometimes prevent the intumescent layer from expanding properly when heated, rendering the fire protection useless.
Conclusion: Investing in Intumescent Fire Paint
Choosing Intumescent Fire Paint is not just a regulatory hurdle; it's a smart investment in the longevity and safety of your building. This innovative product provides crucial minutes of resistance, effectively turning structural elements into passive fire barriers.
Whether you are protecting historical wooden beams or modern steel frameworks, ensuring the correct type and thickness (DFT) of the intumescent coating is paramount. Always consult with certified professionals to determine your specific fire rating requirements and guarantee a compliant, safe application.
Frequently Asked Questions (FAQ) about Intumescent Fire Paint
- What is the difference between fire-retardant paint and intumescent paint?
- Fire-retardant paint reduces the surface spread of the flame, limiting how quickly the fire moves across a material. Intumescent paint actively swells when heated, forming a thick, insulating char barrier that delays the heat from reaching and compromising the structural material.
- Is Intumescent Fire Paint expensive?
- Intumescent coatings are significantly more expensive than standard decorative paints due to their complex chemical composition and rigorous testing. However, when weighed against the potential cost of structural damage or life loss, the investment is highly cost-effective.
- Do I need to apply primer before the intumescent coating?
- Yes. A compatible primer is almost always required. For steel, the primer prevents corrosion which could flake the intumescent layer off. For wood, the primer ensures proper adhesion and stabilizes the surface.
- How do I know if the application thickness is correct?
- The application thickness, or Dry Film Thickness (DFT), must be measured during application using specialized gauges. For certified projects, a third-party inspection is often required to issue a certificate of conformity, guaranteeing the required DFT was achieved for the specified fire rating.
