How To Set Up A Paint Sprayer: Your Ultimate Step-by-Step Guide
So, you've decided to ditch the brush and roller and finally experience the speed and flawless finish of a paint sprayer. Smart move! Paint sprayers are powerful tools, but they aren't exactly "plug and play." If you're wondering how to set up a paint sprayer correctly, you've come to the right place.
Getting the setup right is absolutely critical. A poorly set-up sprayer leads to clogs, uneven application, and hours of frustration. This guide will walk you through everything, from preparing your paint to dialing in the perfect spray pattern, ensuring you get that professional, factory-smooth finish on your first try.
Choosing the Right Equipment (Pre-Setup Checklist)
Before you even think about connecting hoses or pulling triggers, we need to confirm you have all the necessary gear. Having the right protective equipment and accessories makes the job safer and cleaner.
- The Sprayer Unit: Airless or HVLP (High-Volume, Low-Pressure).
- Appropriate Tip/Nozzle: Ensure the tip size matches the material you are using (paint manufacturer recommendations are key).
- Safety Gear: Respirator, safety glasses, gloves, and protective clothing.
- Thinning Agents: Water (for latex/acrylic) or mineral spirits/paint thinner (for oil-based).
- Strainers/Filters: To prevent clogs.
- Buckets: Two clean buckets—one for paint and one for clean water/thinner.

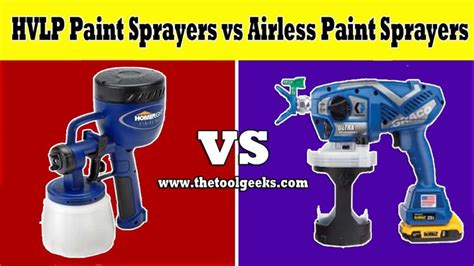

Airless vs. HVLP: Understanding Your Tool
The method used to set up a paint sprayer depends heavily on the type you are using. Airless sprayers are faster and great for large areas and thick materials, while HVLP sprayers are typically used for fine finishes (cabinets, furniture) and use less material due to lower overspray.
If you are using an Airless sprayer, you'll be focusing on managing high pressure and priming the pump. If you're using an HVLP unit, your focus will be on air cap adjustments and fluid control.
The Essential Pre-Setup Steps (Preparation is Key)
The quality of your setup hinges on how well you prepare the paint itself. Don't skip these steps, as they directly impact the flow and longevity of your sprayer.
Thinning the Paint Properly
Most paints straight out of the can are too thick to atomize efficiently in a sprayer, especially in HVLP units. You need to thin the material according to the manufacturer's recommendations—usually about 5% to 10% thinner added to the paint volume.
How do you know if it's thin enough? You can use a viscosity cup, which measures how long it takes for a sample to drain, or you can use the simpler "stir stick" method. When lifted, the paint should drip off the stick quickly and consistently, like heavy cream, not slowly like syrup.
Always mix the thinner in slowly and thoroughly. Remember, you can always add more thinner, but you can't easily take it out!
Filtering and Loading the Material
This step is non-negotiable if you want to avoid clogs. Even brand-new paint cans can harbor dried chunks, dust, or skin that will instantly block your delicate spray tip.
Pour the thoroughly thinned paint through a fine mesh paint strainer directly into the pickup bucket (for airless) or the cup (for HVLP). This small effort saves huge headaches later on, guaranteeing a clean flow right from the start.

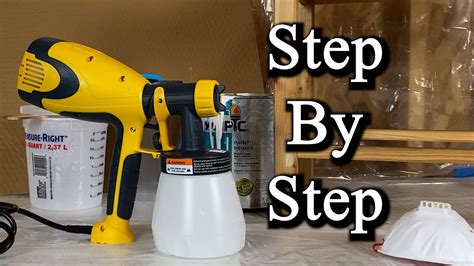

Step-by-Step Guide: How To Set Up A Paint Sprayer
Now that your paint is ready and your equipment is assembled, it's time to get the machine itself running. Follow these steps carefully to ensure a smooth transition from prep work to spraying.
- Connect the Hoses and Gun: Securely attach the high-pressure hose to the sprayer unit and the spray gun. Ensure all connections are tightened by hand, plus a quarter turn with a wrench if necessary, to prevent leaks under pressure.
- Insert the Filter/Tip Assembly: Place the appropriate filter into the gun handle (if applicable) and secure the spray tip or nozzle assembly onto the front of the gun. Make sure the tip is oriented correctly (usually pointing forward, not backward).
- Submerge the Pickup Tube: Place the intake tube (the long one) securely into your bucket of strained paint. Place the prime tube (the return tube) into a separate waste bucket or back into the paint bucket if allowed by your unit.
- Flush the System (Airless/HVLP): Before introducing paint, it's wise to flush the system with water (for water-based paints) or mineral spirits (for oil-based). This lubricates the seals and ensures the components are clean from manufacturing residue. Turn the system on, set it to Prime/Low Pressure, and circulate the fluid until it runs clean.
Once the flush is complete, it's time to introduce the actual paint material.

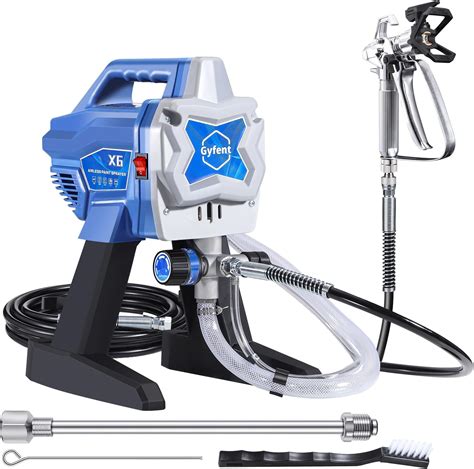

Priming the Pump (For Airless Sprayers)
Priming removes trapped air from the pump and lines, which is crucial for consistent pressure. Air causes sputtering and an uneven finish.
- Leave the pressure setting on low and the gun safety lock engaged.
- Turn the Prime/Spray valve to the "Prime" position.
- Switch the unit on. You should see fluid (first the water/thinner, then the paint) start flowing out of the return tube into the waste bucket.
- Wait until only pure, un-aerated paint is flowing smoothly out of the prime tube.
- Immediately turn the valve to the "Spray" position. The system is now primed and pressurized.
Adjusting Pressure and Fan Settings (Testing Phase)
Setting the correct pressure is perhaps the most important part of learning how to set up a paint sprayer for perfect results. Too low, and you get "tails" (heavy lines) at the edges of the spray pattern. Too high, and you waste paint due to excessive overspray.
Start with a medium pressure setting (or the manufacturer's suggested minimum). Point the gun at a scrap piece of cardboard or plastic.
Slowly increase the pressure until the spray pattern is fully atomized and there are no heavy lines or "tails" visible on the edges. Once you hit that sweet spot, stop increasing the pressure.

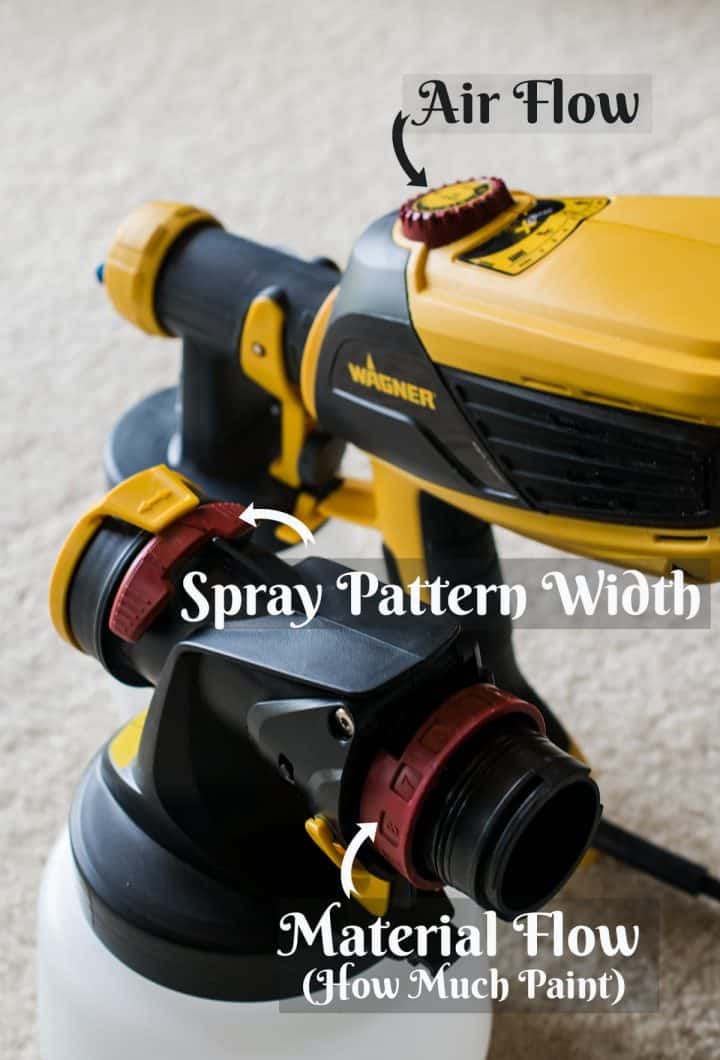

For HVLP Users: Adjust your air regulator to the manufacturer's suggested PSI (usually around 10-25 PSI at the air cap) and adjust your material flow control until you achieve a wet, even coat without runs or drips. Experiment with the fan control knob to adjust the width of your spray pattern.
Safety First: A Quick Reminder
Paint sprayers operate under immense pressure. Never point the gun at yourself or anyone else. Always engage the trigger lock when the sprayer is running but not in use, and before attempting to clear a clog or changing a tip.
Wear your respirator. The mist created by atomizing paint is highly breathable and toxic. Ventilation is key!
Conclusion
Learning how to set up a paint sprayer takes a little patience, especially when dealing with the vital steps of thinning and priming. However, once your paint is strained, your pump is primed, and your pressure is dialed in, the actual painting process is fast, efficient, and incredibly rewarding.
Remember these three key takeaways: always strain your paint, follow the manufacturer's guidelines for thinning, and always test your spray pattern before attacking your actual project. Happy spraying!
Frequently Asked Questions (FAQ)
- What if my paint sprayer keeps sputtering?
- Sputtering is usually caused by trapped air in the system or a clogged filter/tip. Turn the unit off, check that the intake tube is fully submerged in the paint, check for blockages, and re-prime the pump to ensure all air is removed.
- Do I need to thin latex paint for an Airless sprayer?
- It depends on the specific tip size and the thickness of the paint. While airless sprayers can handle thicker material than HVLP, thinning 5% (with water) is often necessary to achieve a perfect, professional finish and reduce the strain on the pump.
- How often should I change the sprayer tip?
- Spray tips wear out over time. A worn tip will lead to a wider fan pattern and more material usage. If you are using latex paint, tips typically last for about 40–60 gallons before they should be replaced.
- What is "tailing" in a spray pattern?
- Tailing refers to heavy lines of paint appearing on the vertical edges of your spray fan pattern. This is a clear sign that your pressure is set too low for the viscosity of the paint you are using, or the paint needs further thinning. Increase the pressure slightly until the tails disappear.
