Explosion Proof Fan Paint Booth: Your Ultimate Guide to Safety and Compliance
If you operate a commercial paint booth, whether for automotive repair or industrial coating, safety is not just a priority—it's the law. The air inside a paint booth is volatile, filled with flammable fumes (Volatile Organic Compounds or VOCs) and particulate matter. Ignoring these risks is a disaster waiting to happen. That's why investing in a high-quality Explosion Proof Fan Paint Booth system is non-negotiable.
But what exactly makes a fan "explosion proof"? And how do you ensure the system you choose meets strict safety codes? We're here to walk you through the essentials, guaranteeing you keep your team safe and stay compliant with crucial industry standards. Let's dive in and demystify the science of safe ventilation.
Why You Absolutely Need an Explosion Proof Fan in Your Paint Booth
The term "explosion proof" might sound dramatic, but when dealing with flammable vapors, it's a critical reality. Standard electrical equipment generates sparks or operates at temperatures that can ignite paint solvent fumes. Even the smallest spark can lead to a catastrophic fire or explosion, especially when paint vapor concentrations reach their Lower Explosive Limit (LEL).
An explosion proof fan, unlike conventional motors, is specifically designed to contain any internal spark or explosion. This containment prevents the hot gases from escaping into the surrounding hazardous environment. Essentially, if an ignition event occurs inside the motor housing, the fan's robust construction keeps the danger safely sealed away from the volatile paint booth atmosphere.
This required level of safety applies not just to the motor, but to the entire fan assembly, including wiring, housing, and even the fan blades themselves. Safety regulations, such as NFPA 33 (Standard for Spray Application Using Flammable or Combustible Materials), mandate the use of certified explosion proof equipment in defined hazardous locations within the paint booth environment.
Understanding Hazardous Locations and Ratings (NEC/ATEX)
Choosing the correct explosion proof equipment requires understanding how regulatory bodies classify hazardous areas. In North America, the National Electrical Code (NEC) uses a Class, Division, and Group system. Internationally, the ATEX directives are often used.
Paint booths typically fall under specific classifications because they handle ignitable liquid vapors. Most often, the interior of the booth, and the immediate vicinity of the exhaust stack, are classified as hazardous areas.
NEC Classification for Paint Booths:
- Class I: Deals with flammable gases or vapors (like paint solvents).
- Division 1: Ignitable concentrations exist under normal operating conditions (this usually applies inside the booth during spraying).
- Group D: Specifically covers environments containing gasoline, propane, acetone, and certain paint thinners.
Therefore, your Explosion Proof Fan Paint Booth equipment must be rated Class I, Division 1, Group D, or better. Always check your local jurisdiction and NFPA 33 standards to confirm the exact requirements for your specific installation.

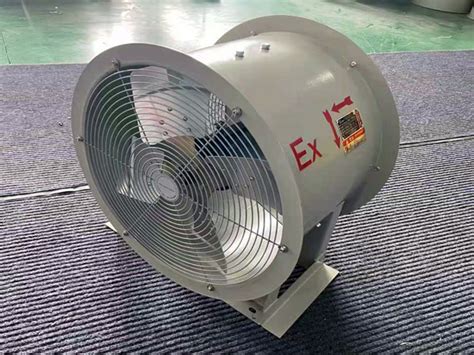

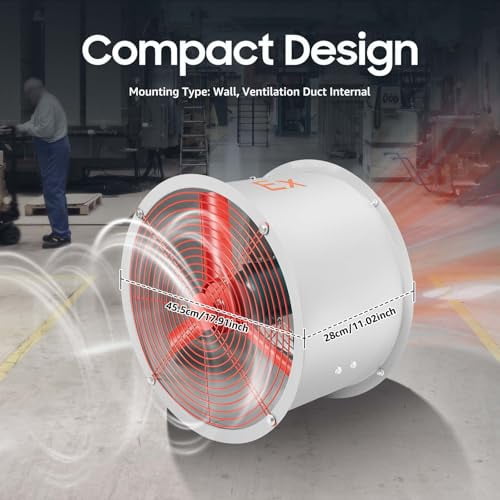

Key Features to Look for in a Quality Explosion Proof Fan
Not all fans are created equal, even if they claim to be "explosion proof." When making this critical investment, you need to scrutinize the specifications beyond just the basic hazardous location rating. The smallest detail can make a difference in long-term safety and performance.
Look for specific certifications from recognized testing laboratories. Underwriters Laboratories (UL) and ETL (Intertek) are two of the most trusted names. If the fan doesn't carry an explicit UL or ETL listing for hazardous locations, steer clear. Furthermore, the construction materials must be carefully considered to prevent sparking.
Here are the essential features your fan must possess:

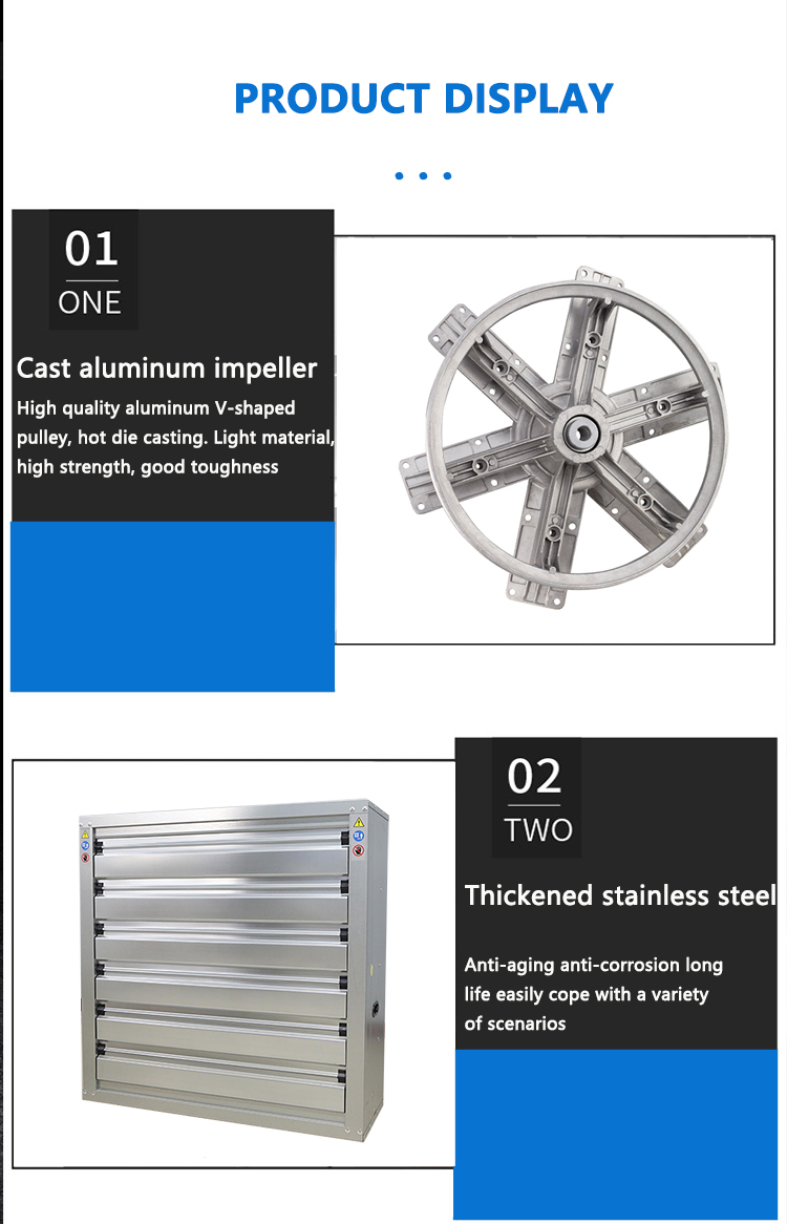

- Non-Sparking Construction: Fan blades and the housing liner should be made of non-ferrous materials (like aluminum or brass) to prevent friction sparks if contact occurs.
- Totally Enclosed Fan Cooled (TEFC) Motor: While the fan casing is explosion proof, the motor enclosure should prevent dust and moisture intrusion, prolonging motor life.
- External Motor Placement: For exhaust fans, the motor should ideally be positioned outside the airflow stream. This prevents flammable vapors from coming into contact with the motor components entirely.
- Temperature Rating (T-Code): The fan motor surface temperature must remain below the ignition temperature of the specific flammable material being used. For paint solvent vapors, a low T-Code (like T3 or T4) is usually required.
Installation and Maintenance: Keeping Your System Safe
Having the best explosion proof fan means nothing if it's installed improperly or neglected. Proper installation ensures regulatory compliance and maximum safety, while rigorous maintenance guarantees peak performance and longevity for your critical equipment.
Always hire a licensed professional who is experienced in hazardous location wiring and ventilation system setup. Incorrect wiring or poor grounding can defeat the entire explosion-proof design. Remember, the exhaust ductwork must also be properly sealed and routed away from air intake zones to prevent recirculation of hazardous fumes.
Regular maintenance involves more than just changing filters. You need to inspect the fan blades for paint build-up, which can lead to imbalance and dangerous friction. Furthermore, regularly check the motor housing and seals to ensure its explosion proof integrity has not been compromised by vibration or wear.
Sizing the Fan: CFM Calculation Made Simple
The core job of your Explosion Proof Fan Paint Booth system is ventilation. If the fan is too small, hazardous fumes will linger, increasing fire risk and harming air quality. If it's too large, you waste energy and may damage your filtration system prematurely.
Sizing is determined by calculating the required airflow rate, measured in Cubic Feet per Minute (CFM). This calculation ensures you achieve the minimum necessary air changes per minute (ACPM) mandated by safety codes. For industrial or automotive paint booths, NFPA 33 generally requires a minimum of 60 to 100 feet per minute (FPM) air velocity through the booth's cross-section, or sometimes 100 ACPM.
The simple formula for calculating required CFM is:
- Measure the booth's interior dimensions (Length x Width x Height).
- Calculate the volume in cubic feet.
- Multiply the volume by the required air changes per minute (ACPM) and divide by 60 (minutes in an hour).
For example, a booth that is 25 ft long, 15 ft wide, and 10 ft high needs 3,750 cubic feet of air changed every minute (if calculating based on 100 FPM cross-draft velocity). This required CFM should then be matched by your fan's performance curves, factoring in system static pressure losses caused by ducts and filters.
Common Misconceptions About Explosion Proof Equipment
Even seasoned professionals sometimes fall prey to common misunderstandings about these specialized ventilation systems. Clarity is key when safety is on the line.
One major mistake is assuming that "explosion proof" means the equipment will never fail or cause a blast. In reality, it means the equipment is designed to contain an explosion *if* it occurs within its housing. It's a containment measure, not a prevention measure for the overall hazardous atmosphere.
Another frequent misconception is believing that a standard industrial fan placed outside the hazardous zone is sufficient. While placing the motor outside helps, the components that are still inside the ductwork (like the blades and wiring passing through the wall) must still be certified as intrinsically safe or explosion proof to prevent surface friction or short circuits from reaching the volatile zone.
Finally, never assume that simply buying a certified explosion proof fan covers all your electrical needs. All supplementary components—switches, wiring enclosures, light fixtures, and thermostats located within the hazardous zone—must also carry the correct hazardous location rating.
Conclusion
Choosing and installing the correct Explosion Proof Fan Paint Booth system is the single most important safety decision you can make for your facility. By understanding hazardous location ratings, focusing on certified non-sparking construction, and accurately calculating your required CFM, you ensure optimal safety and compliance.
Remember that safety is an ongoing process, not a one-time purchase. Regular maintenance and adherence to NFPA standards will keep your system running efficiently, protecting both your employees and your valuable assets from the devastating risks associated with volatile paint vapors. Don't compromise; invest in the best explosion proof protection available.
Frequently Asked Questions (FAQ)
- What is the difference between an Explosion Proof Fan and a standard fan?
- A standard fan's motor may produce sparks or reach high temperatures that can ignite flammable paint vapors. An Explosion Proof Fan is built with a rugged, tightly sealed casing designed to contain any internal spark or explosion, preventing ignition from escaping into the surrounding hazardous atmosphere.
- Does the fan need to be explosion proof if the motor is outside the paint booth?
- Yes, often. While NFPA 33 allows the motor to be placed outside the hazardous ductwork, the components that remain in the air path (like the fan blades, shaft seals, and potentially some internal wiring) must still be certified to prevent sparking or friction ignition within the air stream where flammable vapors pass.
- What does the T-Code rating mean on my Explosion Proof Fan Paint Booth equipment?
- The T-Code (Temperature Code) indicates the maximum allowable surface temperature the fan motor and housing can reach. This maximum temperature must be lower than the auto-ignition temperature of the chemicals used in the paint booth to prevent spontaneous combustion.
- How often should I clean the fan blades?
- Fan blades should be inspected and cleaned regularly, typically every month or every time filters are changed. Excessive paint buildup creates static electricity risk, drastically reduces the fan's efficiency (CFM), and can lead to dangerous imbalance and friction sparking.
- Is a VFD (Variable Frequency Drive) safe to use with an explosion proof fan?
- A VFD can be used, but it must be located outside the classified hazardous area. Furthermore, the motor itself must be explicitly rated for VFD usage, and the VFD and motor combination must be installed and wired according to specific manufacturer instructions to maintain the explosion proof rating and temperature limits.
