Can Beams Function As Rim Joists
Can Beams Function as Rim Joists?
Ever found yourself staring at a building project, wondering if you can get creative with your structural elements? Specifically, have you pondered: "can beams function as rim joists?" It's a fascinating question that touches upon the core principles of framing and structural integrity. Let's dive into whether these two vital components can, or should, swap roles in your construction.
Understanding Rim Joists and Beams

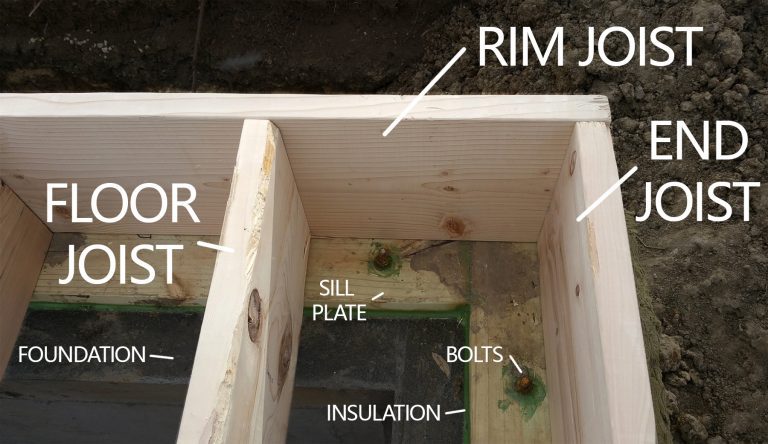

Before we answer the big question, let's clarify what each of these components does. A rim joist is a crucial part of your floor framing. It's typically a piece of lumber that runs perpendicular to the main floor joists, enclosing the ends of the joists and providing lateral stability to the floor system.
Think of it as the belt holding your floor joists together at the perimeter. It helps transfer vertical loads down to the foundation and resists rotational forces on the ends of the joists. It also forms a nailing surface for sheathing and siding.
A beam, on the other hand, is a much more substantial horizontal structural member. Its primary role is to carry heavy vertical loads over long spans, transferring them to columns, walls, or foundations. Beams are designed for significant bending strength and are often much deeper and wider than standard joists.
The Core Question: Can Beams Function as Rim Joists?
So, back to our original query: can beams function as rim joists? In a strictly technical sense, yes, a beam could conceptually take the place of a rim joist in some very specific, highly engineered scenarios. A beam is inherently stronger and capable of handling more load than a typical rim joist.
However, and this is a big "however," it's generally not practical, economical, or standard practice. Rim joists primarily deal with lateral forces, provide an enclosure, and offer nailing surfaces. While a beam could handle the lateral forces, it's often overkill and might introduce other complexities.
Key Considerations and Potential Scenarios
If you're still thinking about using a beam as a rim joist, here are some points to consider:
- Over-Engineering: Using a beam where a rim joist suffices is like using a sledgehammer to crack a nut. It's stronger than necessary, leading to increased material costs and potentially more complex connections.
- Connection Details: How would the floor joists connect to a much larger beam? Standard hangers and nailing schedules are designed for joist-to-rim joist connections. Adapting this for a beam could be tricky and require custom solutions.
- Thermal Bridging & Insulation: A larger beam might create more thermal bridging, making insulation and sealing more challenging around the perimeter of your floor system.
- Building Codes: Local building codes and structural engineering principles are paramount. Deviating from standard practices usually requires explicit approval from a licensed structural engineer.
- Function vs. Strength: While a beam has superior strength, its primary function isn't to tie the ends of joists together and provide a nailing surface in the same way a rim joist does.
When Might This Be Considered (and Why It's Tricky)
Perhaps you're dealing with a very specific structural challenge, like a small, heavy point load at the edge of a floor system, or you're renovating an older structure with unusual framing. In such rare instances, a structural engineer might design a system where a beam serves a dual purpose, effectively functioning in part as a rim joist while primarily carrying a significant load.
However, for typical residential or light commercial construction, adhering to standard rim joist designs is almost always the correct and most efficient path. Any deviation should only be done under the direct supervision and design of a qualified structural engineer. They understand the nuances of how beams function as rim joists or within complex structural systems.
Conclusion
While a beam possesses the inherent strength to technically act as a boundary member, asking "can beams function as rim joists" usually leads to the answer: it's not the best or most common practice. Rim joists are specifically designed for their role in tying the floor system together and providing lateral stability. Using a beam for this purpose is generally over-engineering, costly, and complicates connections.
For safe, efficient, and code-compliant construction, stick to the tried-and-true methods unless a structural engineer explicitly designs an alternative. Always consult with professionals when making structural decisions.
Frequently Asked Questions (FAQ)
- Can I just use a regular beam instead of a rim joist?
- While a beam is stronger, it's generally not recommended or standard practice. Rim joists have specific functions beyond just carrying vertical loads, like tying floor joists together and providing lateral stability. Using a beam is usually over-engineering and complicates connections.
- Why are rim joists important?
- Rim joists are crucial for several reasons: they connect the ends of the floor joists, provide lateral bracing to prevent joist twisting, transfer vertical loads to the foundation, and offer a continuous nailing surface for subflooring and exterior finishes.
- Do I need an engineer to decide if beams can function as rim joists?
- Absolutely! Any significant deviation from standard building practices, especially concerning structural elements like beams and rim joists, should always be reviewed and designed by a licensed structural engineer. They ensure safety and code compliance.
- What's the main difference in function between a beam and a rim joist?
- A beam's main function is to support heavy vertical loads over spans. A rim joist's main function is to tie the ends of floor joists together, provide lateral stability to the floor system, and form the perimeter of the floor diaphragm.
